QSW-3216R-8S8T

Brand: QNAP
Product Code: QSW-3216R-8S8T
Availability: 10
Weight: 1.52kg
Dimensions: 4.33cm x 20.70cm x 19.95cm

Half-width Rackmount 16-Port 10GbE Unmanaged Switch for SMB/SOHO high-speed networking environment

Call for Price:
- +

Half-width Rackmount 16-Port 10GbE Unmanaged Switch for SMB/SOHO high-speed networking environment

10GbE

  • 10G Multi-Gig connectivity

    Includes eight 10GbE RJ45 and eight 10GbE SFP+ fiber ports for connecting different interfaces.

  • Flow Control

    Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-3216R-8S8T avoids packet loss from unparalleled bandwidth.

  • Entry-level solution

    Automatic loop detection and blocking to ensure continuous network operation.

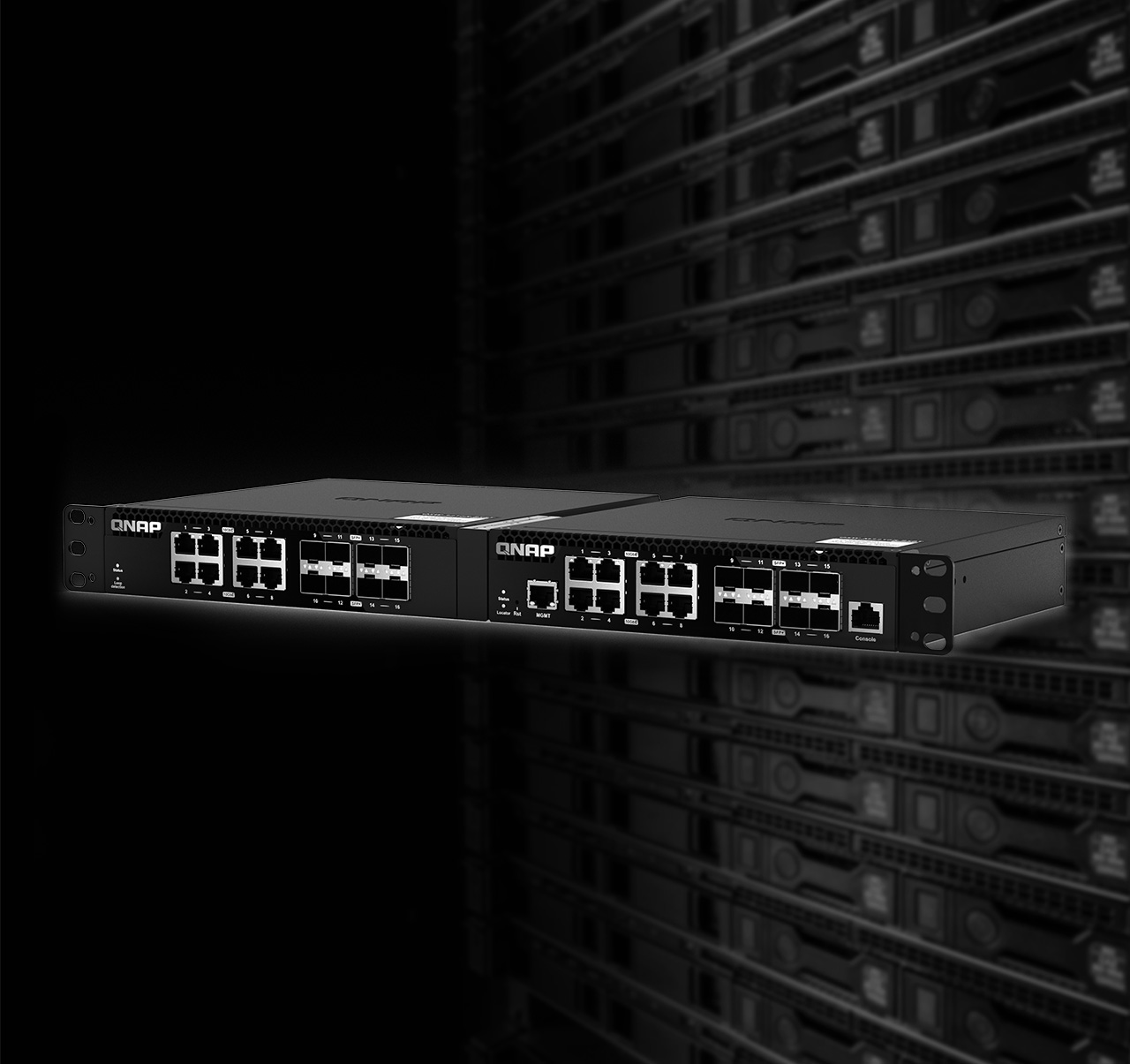

Half-width design, two models in 1U

With a half-width rackmount design, a QSW-3216R-8S8T can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.
design

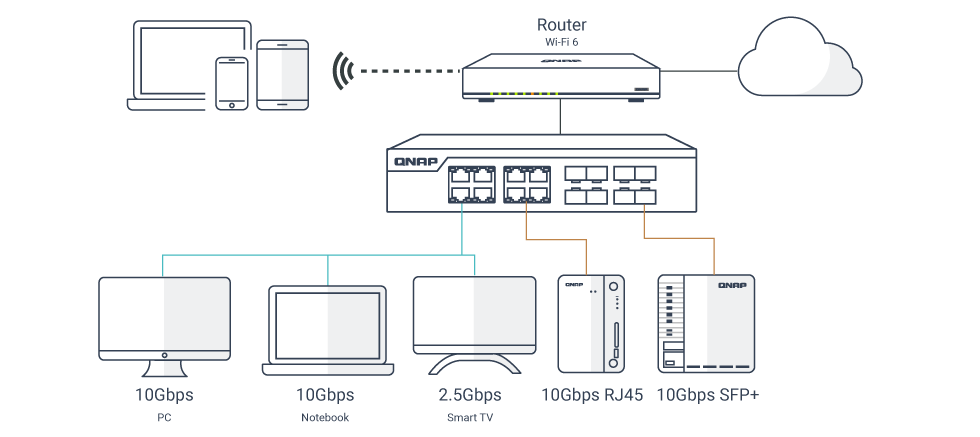

Flexible deployment with sixteen 10GbE SFP+ and RJ45 ports

The QSW-3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling.
2.5gbex10gbe

Loop detection and blocking

The QSW-3216R-8S8T features network loop detection. If a network loop is detected, the QSW-3216R-8S8T automatically locks the looped ports to ensure the network environment quickly resumes normal operation.

Dependable performance with effective heat dissipation

With a compact metal body that optimizes cooling performance, the QSW-3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.

Fully embrace high-speed networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

Network Switches
10GbE BASE-T (RJ45) 8 (10G/5G/2.5G/1G/100M)
10GbE SFP+ 8 (10G/1G)
Console YES
Fan PWM VAPO Bearing fan x 2
Form Factor Half-width rackmount
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60Hz
MAC Address Table 16K
Management Interface Unmanaged
Management Type Unmanaged
Max. Power Consumption 48.632W
Number of Ports 16
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Power Supply Description Internal Power supply Unit
Switching Capacity 320Gbps
Total Non-Blocking Throughput 160Gbps
