Overview

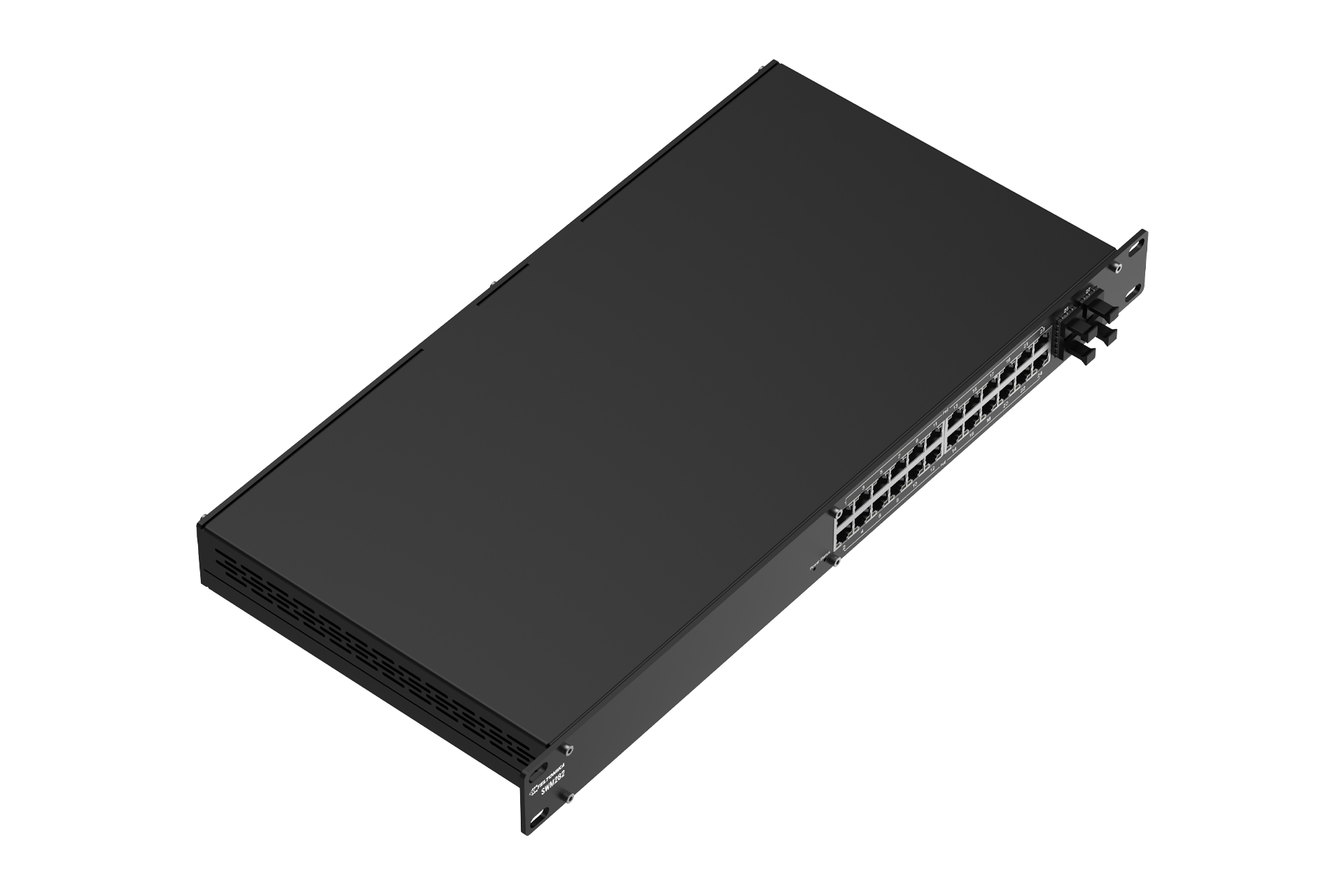

The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.

PoE+

Deliver power and data through 24 PoE+ ports with up to 30W per port.

L2+

Advanced routing protocols & VLAN segmentation.

Cloud-Enabled

Shipped with 2 years of RMS Management.

Protocols

Profinet, MRP, and EtherNet/IP for mixed industrial environments.

Industrial switch
Profinet	Profinet Class B conformance (available with optional order code)
ETH	Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Fibre	4 x SFP ports
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
MRP	MRP client role, MRP manager role
L2 features	Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP	DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings	Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features	Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS	Port priority, DSCP priority, 802.1p priority, TOS
PoE+ ports	Ports 1-24
PoE standards	IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
PoE Max Power per Port (at PSE)	30 W
Total PoE Power Budget (at PSE)	300 W
Operating temperature	0 °C to 50 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Bandwidth (Non-blocking)	56 Gbps
Forwarding rate	83.33 Mpps
Jumbo frame support	10000 bytes
MAC address table size	8K entries
Connector	C14 connector
Routing	Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
VLAN	Port VLAN separation
Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
Operating system	SwmOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++
