TSF010
Overview

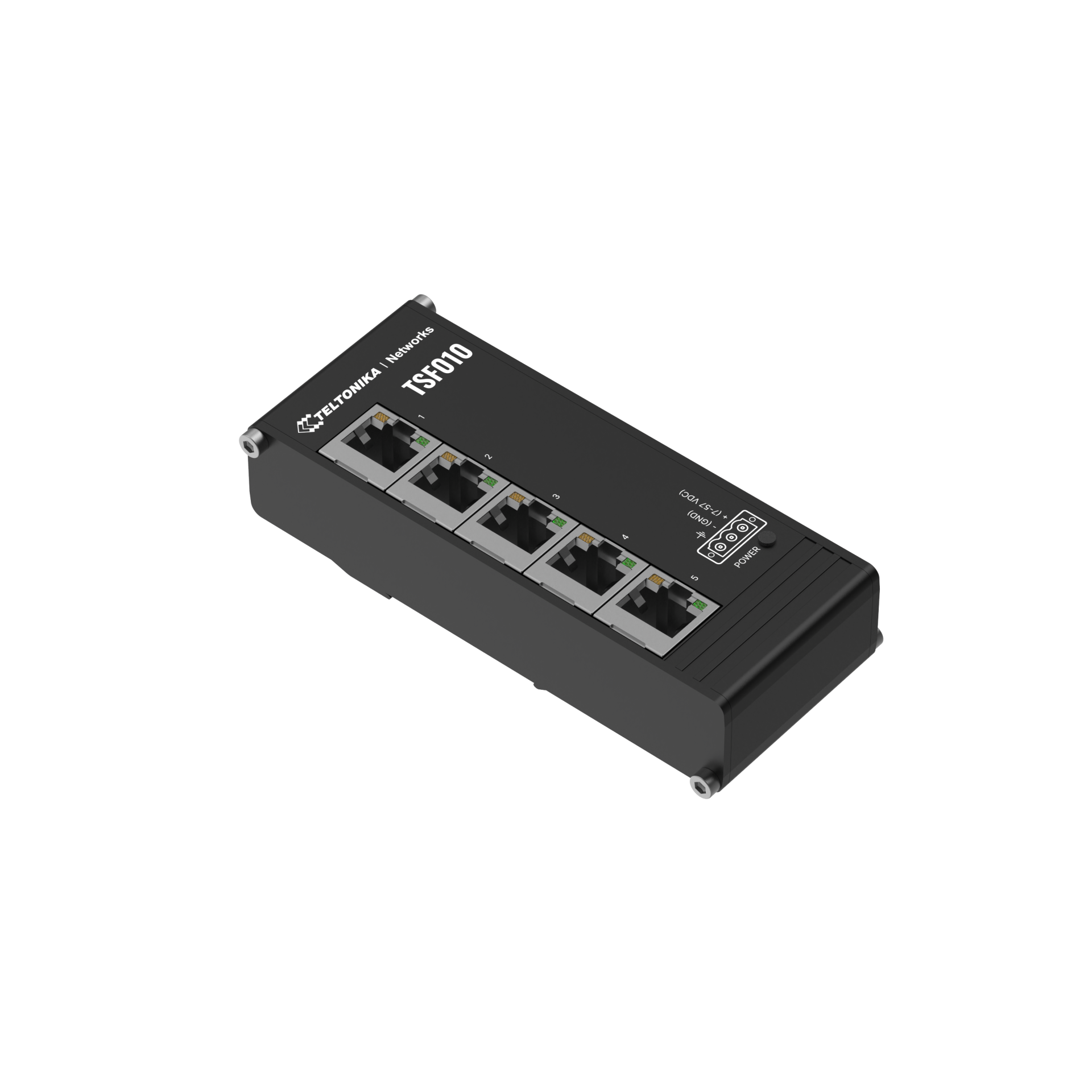

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input supports both a flexible AC range and a wide DC voltage range, making it a reliable, unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
3-PIN POWER INPUT
Flexible and tailor-made for industrial use.
FLAT & COMPACT
Flat and compact design weighing only 142 g.
INTEGRATED DIN RAIL BRACKET
Easy mounting for plug-and-play deployment.
7-57 VDC
Suitable voltage range for industrial applications.
| Industrial switch | |
|---|---|
| Profinet | Profinet Class A conformance (available with optional order code) |
| ETH | 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Bandwidth (Non-blocking) | 10 Gbps |
| Jumbo frame support | 9216 bytes |
| MAC address table size | 2K entries |
| Connector | 3-pin industrial DC power socket |
