Input Output Controller - COSEC ARC IO800

Price: 0.00EGP

Qty: - +

Overview

COSEC ARC IO800 is a versatile Input Output controller designed to extend the capabilities of access control systems. It seamlessly integrates with door controllers to manage auxiliary devices like alarms, sensors, and locks. With its compact design and PoE support, installation is effortless. COSEC ARC IO800 is ideal for enterprises, factories, and institutions requiring enhanced access control and safety features.

With the presence of multiple devices for various functionalities in an organization, it becomes important to have effective central control over them. Matrix presents the best-in-the-Class I/O controller, COSEC ARC IO800 – a compact I/O controller that manages multiple third parties devices, thereby providing a complete automated security system alongside added advantages such as Elevator control and more.

USPs

Input Output Controller with Higher Device Control Capacity

8 AUX In Ports

8 AUX Out Ports

One Device Fits all Controlling Requirements

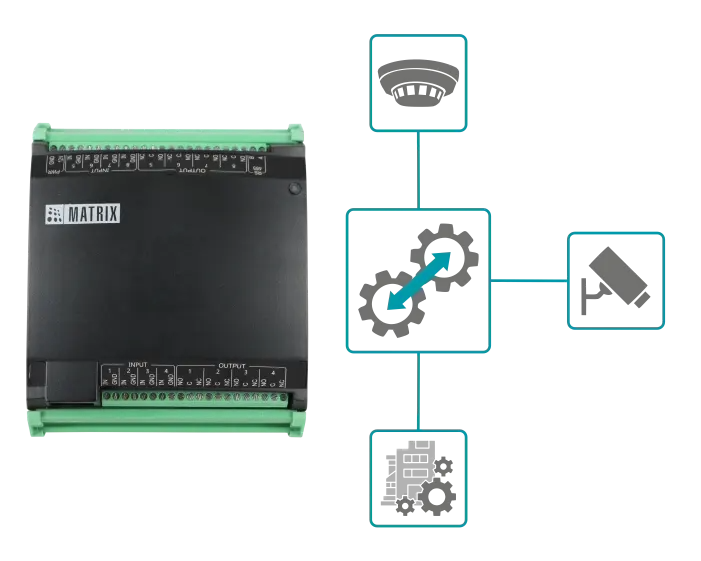

Ensures seamless Input/Output linking

Access Control Integration with Fire Alarm System, Video Surveillance, and BMS

Controlled Floor Access with Elevator Access Control

Siren and Flashers Activation for Forced Door Openings

Enhanced Integrated Environment with Overall Security Coverage

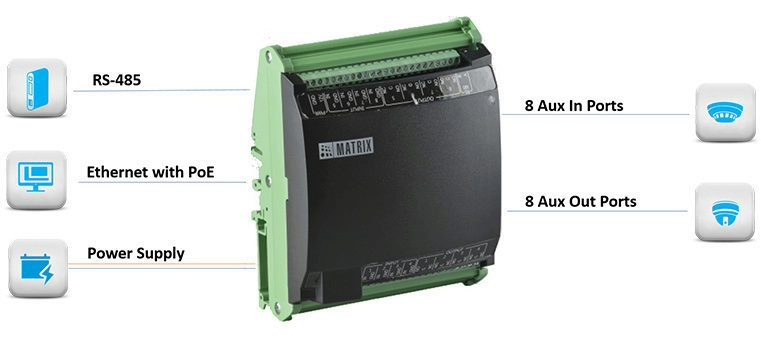

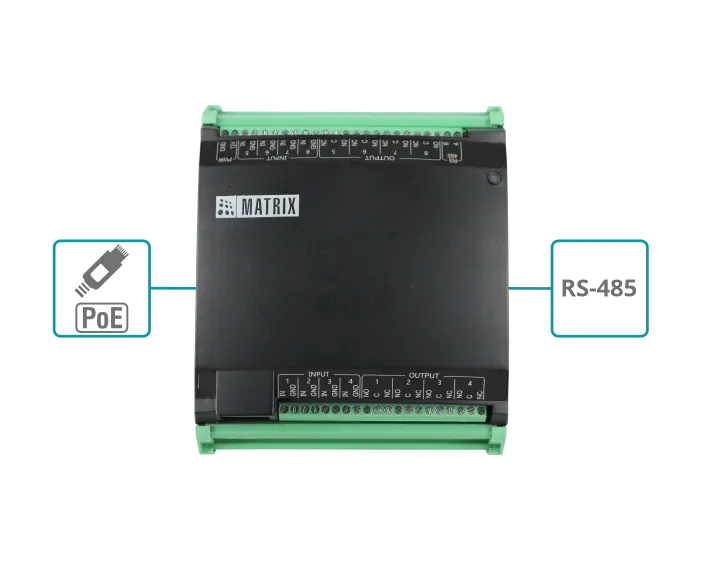

Convenient Communication Options

Ethernet/PoE

RS-485

Features

Secured Communication

COSEC ARC IO800 Input Output Controller secures data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

IP to Door

Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology

Elevator Access Control

COSEC ARC IO800 Input Output Controller enables elevator access control by granting or denying floor access based on user rights, enhancing safety and security

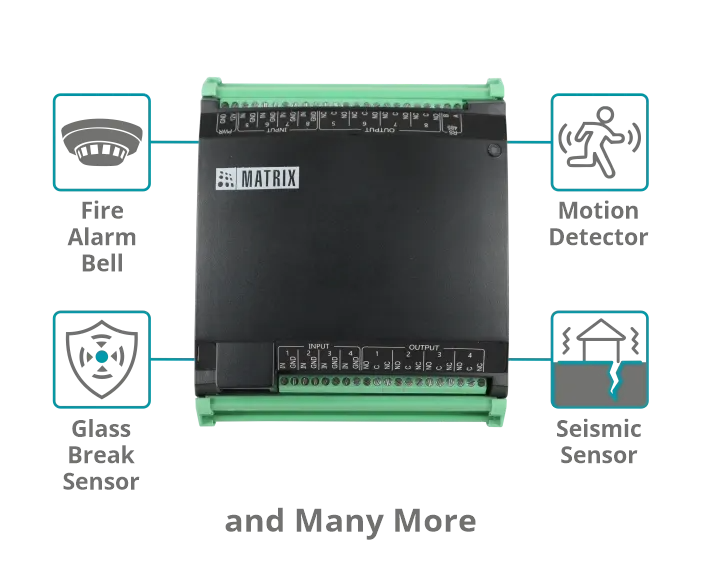

Auxiliary Devices Interface

Allow seamless connection of fire alarm, as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware

Compact Design

Features an innovative, compact design that seamlessly integrates above the door on a false ceiling, ensuring aesthetic appeal and a neat installation

Higher Events Storage

COSEC ARC IO800 Input Output Controller features a built-in offline event storage capacity of 100K events, ensuring accurate event data and security in case of server connectivity breaks

Applications

Input-Output Linking

Elevator Control

Door Interlocking

Fire & Alarm System Integration

Sensor-Driven Automation

Access Control
Event Buffer	100,000
Ethernet	Yes (10/100 Mbps)
PoE	Yes (IEEE 802.3 af)
RS-485	Yes
Aux-In	8 Input Port
Aux-Out	8 Output Port
CPU	PIC32 Microcontroller
Memory	512 Kbytes Flash memory + 128 Kbytes SRAM RAM memory
LED	1 Dual color LED
Buzzer	Yes
Operating Temperature	0°C to +50°C (32°F to 122°F)
Humidity	20% to 95 % RH Non-Condensing
Power	Adaptor = 12 VDC @ 2 A PoE = 12 VDC @1 A”
System Integration	API for Software integration
Operational Modes	Server Assisted(In conjunction with COSEC), Panel-assisted (In conjunction with PANEL 200P) and Standalone Mode( Independent of COSEC and PANEL 200)
