Brand: Matrix

Product Code: ARGO CAE200

Availability: 10

Weight: 0.55kg

Dimensions: 5.00cm x 7.40cm x 18.60cm

COSEC ARGO CAE200 EM Proximity Card Reader

Price: 0.00EGP

Qty: - +

COSEC ARGO CAE – EM Proximity Card Based Ultra Fast Door Controller is a performance, design, and engineering wonder that will revolutionize the way organizations resolve security challenges of protecting valuable assets and employee. It is an intelligent next generation card based door controller with an enhanced 3.5’’ IPS Touchscreen LCD for a visually splendid experience.
The Performance and Elegance Redefined – COSEC ARGO CAE , with EM Proximity card module, is an universal device for multiple applications such as Access Control, Time-Attendance, Cafeteria management and Job Processing & Costing that removes the need of dedicated hardware for diverse solutions.

USPs

Name: COSEC ARGO CAE200
Brand: Matrix
SKU: ARGO CAE200
Availability: InStock

Door Access Control System with Multiple User Credentials

Biometric: Finger

Pin and RFID Cards

Mobile through BLE

Dual Verification for High-Security Applications

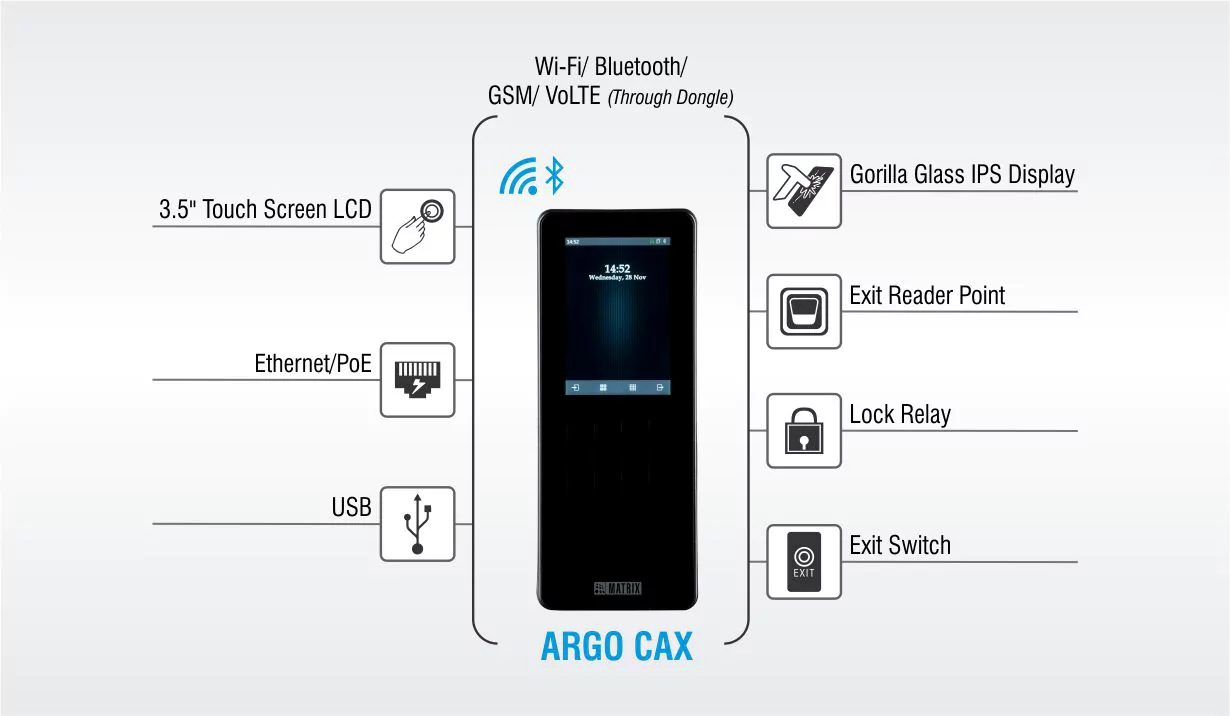

Door Access Control System with Multiple Connectivity Options

Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE Options

Use Existing IT Infrastructure to Meet Future Requirements

Low IT Infrastructure Cost and Future Proof

Higher User and Template Capacity

Door Access Control System stores up to 50,000 User Profiles

Fingerprint Template Capacity up to 25,000 in 1:N Mode

Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode

Event Log Capacity of 5,00,000

Features

Secured Communication

Door Access Control System secures data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Aesthetic Look and Design

Leverages an aesthetic look and sleek design with optimized ergonomics, enhancing corporate aesthetics while providing a stylish and user-friendly solution

Tamper Detection

Door Access Control System provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

3.5” IPS Touch Screen with Gorilla Glass

Durable and scratch-resistant capacitive display, ensuring long-lasting performance and enhanced durability

Vandal Resistance with IK06/IK07

Door Access Control System boasts higher impact resistance with an IK rating, ensuring its durability against rough handling and providing protection against malicious acts

Weather Resistance with IP65

Offers a higher degree of protection with an IP65 rating, providing reliable ingress protection against dust and water

Applications

Time and Attendance

Access Control

Visitor Management

Cafeteria Management

Contract Worker Management

Job Processing and Costing

Access Control
Ingress Protection	IP65
Card	ARGO CAE: EM Prox.
Max. Users	50,000
Wi-Fi	Yes (802.11 b/g/n)
Bluetooth®	Yes (8m Range)
Ethernet	Yes (10/100 Mbps – 1 port)
PoE	Yes (IEEE 802.3 af)
Wiegand	Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable
Exit Switch Port	Yes
Door Lock Relay	Yes (30VDC @ 2A, Dry Contacts NO/NC/COM)
Door Lock Power	Internal PoE Power: 12VDC @ 0.250 A Internal Adapter Power 12VDC @ 0.5 A External Power 12VDC @ 2A
Aux-In	NO
Aux-Out	NO
Reader Interface Types	Interface RS232 WiegandPower 12VDC @ 0.5ALED and Buzzer Control Allowed – GREEN LED Buzzer
CPU	800 MHz ARM cortex A8 based processor
Memory	512 MB DDR3 RAM + 512 MB Flash Memory
Buzzer	Yes
Operating Temperature	0°C to 50°C
Humidity	5% to 95 % RH Non-Condensing
Tamper Detection	Yes
Wall Mount	Yes
Power Adapter	12VDC @ 2A (CE, FCC, BIS)
Battery Backup	No
PIN	Yes
BLE - Mobile	Yes
Event Logs	500,000
Display	3.5″ IPS LCD (Touch Screen)
Display Resolution	480 x 320 Pixel
Gorilla Glass	Yes (Gorilla Glass 3)
Vandal Protection	IK06
Storage Temperature	-20°C to 60°C
3G/4G/LTE	Yes (Additional USB Modem)
USB	Yes (USB 2.0) Micro USB-Type B
Flush Mount	Yes
