Manage all your documents, photos, and other files, back up applications and devices, and protect your assets with professional video surveillance.

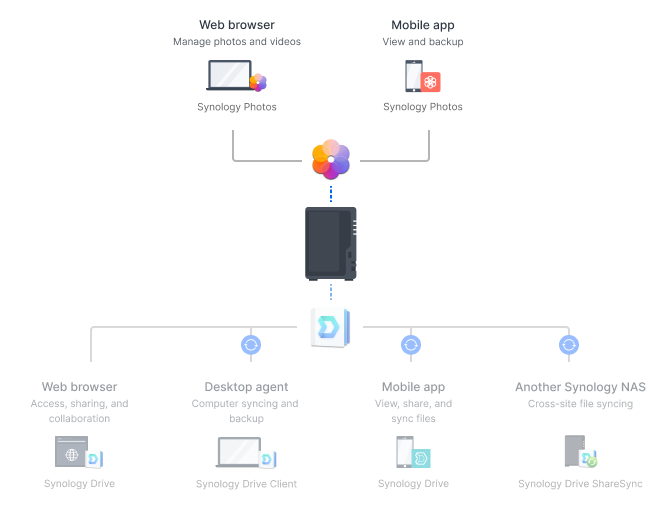

Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates. Learn more
Effortlessly back up and organize photos, videos, and other visual assets using intuitive management tools. Automatically organize your content into albums and create secure share links for stakeholders and teammates.

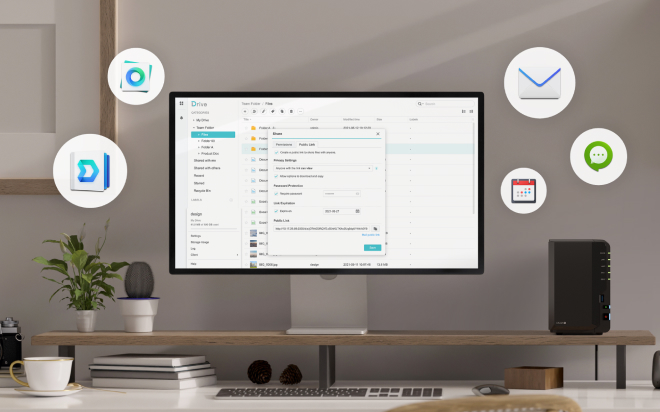

Enhance workplace collaboration with Synology's productivity solutions. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations. Learn more
Enhance workplace collaboration with Synology's productivity solutions. Create, edit, and share documents across teams in real time. Host an on-premises mail server to provide web-based email access while maintaining full data ownership. Additionally, stay connected through secure one-on-one chats, public channels, encrypted private channels, and group conversations.

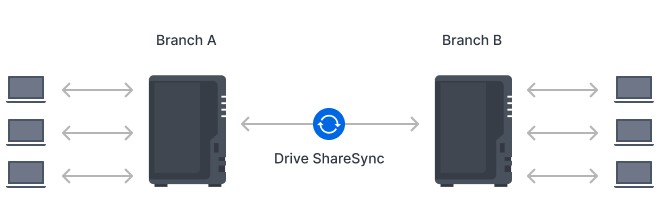

Improve workflow efficiency and team alignment across data sites with automatic one- or two-way site-to-site syncing. Files and folders are kept up-to-date across sites, so everyone stays aligned, whether at home, in the office, or across different branches — all while maintaining full control of your data.

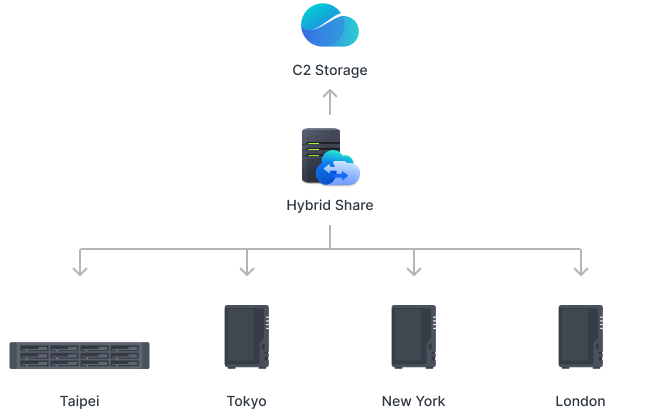

Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.
Empower global workflows with high-speed access to data from anywhere in your network. Our hybrid cloud solution caches frequently used files locally for rapid access, while less frequently accessed data is stored in the cloud, reducing your on-site storage requirements.

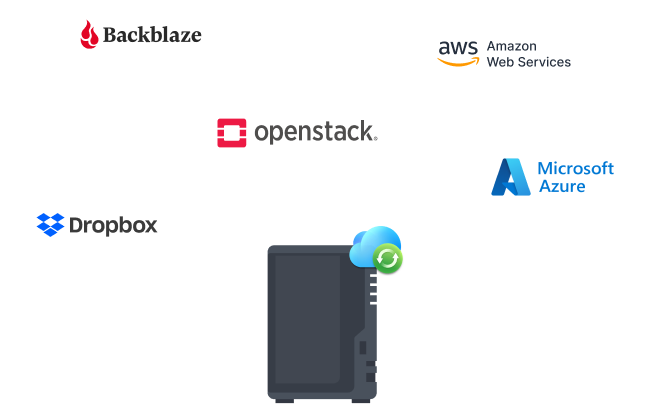

Automatically keep data in sync between Synology NAS and major cloud providers, including BackBlaze B2, Dropbox, Google Drive, and Microsoft OneDrive. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms. Learn more
Automatically keep data in sync between Synology NAS and major cloud providers, including BackBlaze B2, Dropbox, Google Drive, and Microsoft OneDrive. Multiple protocol support, client-side encryption, and customizable sync and bandwidth controls enable efficient storage management across various platforms.

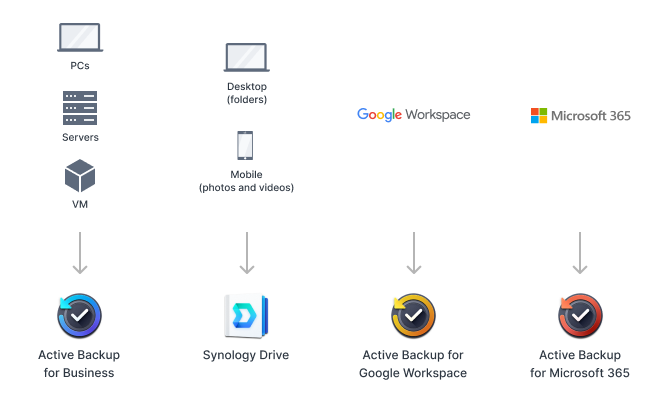

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

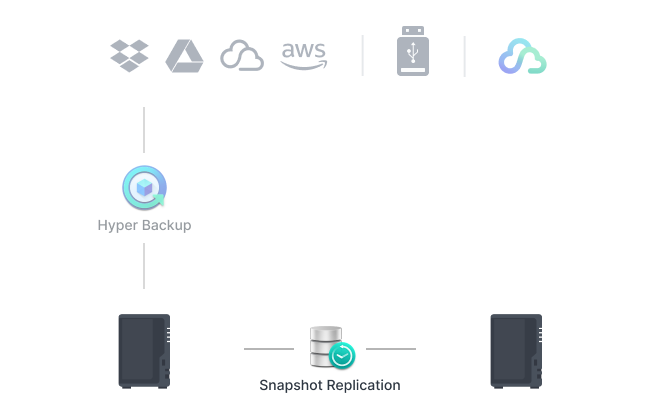

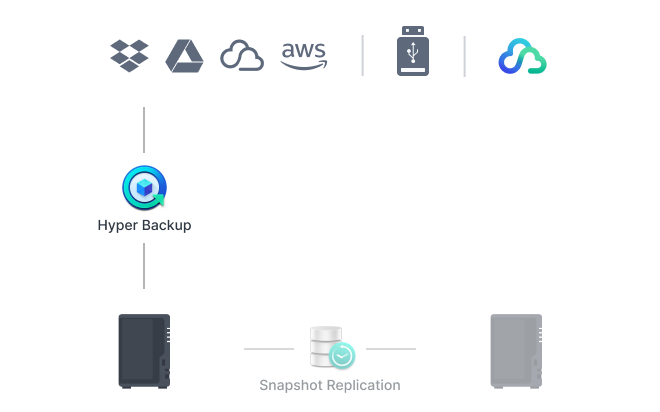

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups, including bare-metal backups, to local and remote servers, external drives, or cloud storage destinations, including Synology C2 Storage.Learn more
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups, including bare-metal backups, to local and remote servers, external drives, or cloud storage destinations, including Synology C2 Storage.
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity. Learn more
Safeguard critical LUNs and shared folders with automated immutable snapshots backed by custom retention policies. Built-in support for offsite replication further ensures robust business continuity.

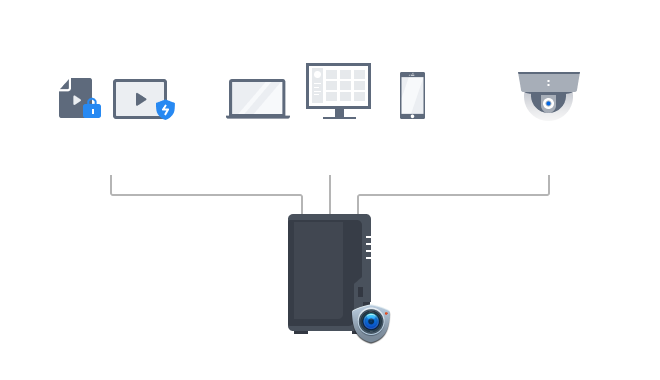

Protecting your business has never been easier, with centralized management, support for over 8,700 IP camera models, and remote monitoring and playback. Synology’s scalable video management system provides all the tools you need for live monitoring, investigation, management, and backup.

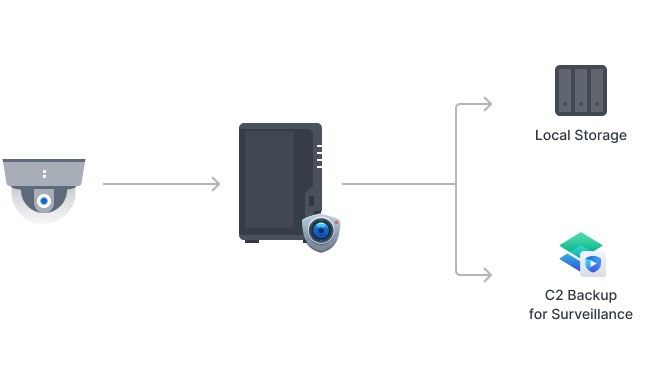

Secure your surveillance footage with robust cloud backup that supports end-to-end encryption. Our cloud-based surveillance backup solution safeguards your Surveillance Station recordings, allowing you to access, view, share, and download footage through a convenient web portal. Ensure your data remains available even if your on-premises system is compromised.Learn more
Secure your surveillance footage with robust cloud backup that supports end-to-end encryption. Our cloud-based surveillance backup solution safeguards your Surveillance Station recordings, allowing you to access, view, share, and download footage through a convenient web portal. Ensure your data remains available even if your on-premises system is compromised.
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.
DSM Specifications |
||
Maximum Single Volume Size |
108 TB |
|
|
Maximum Internal Volume Number |
32 |
|
SSD TRIM |
|
|
Supported RAID Type |
|
|
RAID Migration |
|
|
Volume Expansion with Larger HDDs |
|
|
Notes |
|
Internal Drives |
|
|
|
External Drives |
|
File Protocol |
|
|
|
Maximum Number of SMB Connections (FSCT-Based) |
5 |
|
Windows Access Control List (ACL) Integration |
|
|
NFS Kerberos Authentication |
|
|
Notes |
|
Maximum Local User Accounts |
512 |
|
|
Maximum Local Groups |
128 |
|
Maximum Shared Folder |
128 |
|
Maximum Shared Folder Sync Tasks |
4 |
Maximum Hybrid Share Folders |
10 |
|
Folder and Package Backup |
|
|
|
Entire System Backup |
|
Synology High Availability |
|
|
Syslog Events per Second |
800 |
|
Supported Protocols |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
|
|
Supported Browsers |
|
|
Supported Language |
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
|
Notes |
For an updated list of supported browser versions, check the DSM Technical Specifications. |
Add-on Packages view the complete package list |
||
|
||
Maximum Number of Users |
100 |
|
|
Notes |
|
Download Station |
Maximum Concurrent Download Tasks |
80 |
Maximum iSCSI Target Number |
2 |
|
|
Maximum LUN |
2 |
|
LUN Clone/Snapshot, Windows ODX |
|
Free Email Accounts |
||
|
Maximum Number of Users |
20 |
|
Notes |
|
DLNA Compliance |
|
|
Facial Recognition |
|
|
|
Object Recognition |
|
|
Notes |
Object recognition requires an upgrade of memory capacity to a minimum of 4 GB. |
Maximum Snapshots per Shared Folder |
128 |
|
|
Maximum of System Snapshots |
256 |
Default Licenses |
||
|
Suggested Maximum IP Cameras and Total FPS (H.264) |
|
|
Suggested Maximum IP Cameras and Total FPS (H.265) |
|
|
Notes |
|
Maximum Number of Users |
10 |
|
|
Maximum Number of Hosted Files |
100,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
|
Notes |
|
Maximum Number of Users |
10 |
|
|
Notes |
|
Recommended Virtual Machine Instances |
2 |
|
|
Recommended Virtual DSM Number (Licenses required) |
2 (including 1 Free License) |
|
Notes |
The specifications vary depending on system configuration and memory size. |
Maximum Connections |
4 |
NAS | |
---|---|
CPU Model | Intel Celeron J4125 |
CPU Quantity | 1 |
CPU Core | 4 |
CPU Architecture | 64-bit |
CPU Frequency | 2.0 (base) / 2.7 (turbo) GHz |
Hardware Encryption Engine | ✓ |
Memory | 2 GB DDR4 non-ECC |
Drive Bays | 2 |
Hot Swappable Drive | ✓ |
RJ-45 1GbE LAN Port | 1 |
USB 3.2 Gen 1 Port | 2 |
System Fan | 92 mm x 92 mm x 1 pcs |
Power Supply Unit / Adapter | 60 watts |
Total Memory Slots | 1 |
Maximum Memory Capacity | 6 GB (2 GB + 4 GB) |
Wake on LAN (WOL) | ✓ |
LED Indicators | ✓ |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Relative Humidity | 5% to 95% RH |
