With 60 bays in a 4U rackmount enclosure and support for up to 300 drives after expansion, the Synology HD6500 is the ideal high-density storage solution for large-scale warm and cold storage applications such as full system backups, video post-production, and large surveillance deployments.
2 x 10-core Intel Xeon Silver
Over 6,688/6,662MB/s sequential read/write
64 GB DDR4 ECC, expandable to 512 GB
Expand to 300 drives with four RX6022sas expansion units
The HD6500 is designed to scale up to 5 times in capacity with four additional RX6022sas expansion units. SAS multipath-enabled connectivity provides up to double the typical performance together and increased redundancy.
The HD6500 is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.
Three Gigabit Ethernet and two 10GbE RJ-45 ports allow for rapid transfer speeds right out of the box.

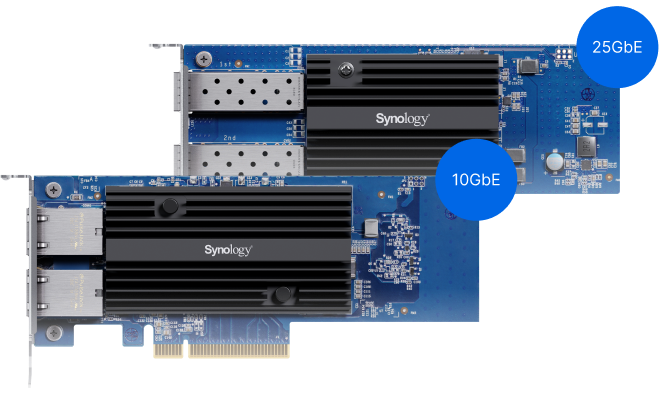

Add extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations by leveraging the four expansion slots.
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Back up your backup solutions, bring all your files together in one place, or bring distributed surveillance deployments under central control.
Massive file server
Host and retrieve massive files from extensive archives whenever needed. Provide user friendly access and set up powerful cross-site syncing.

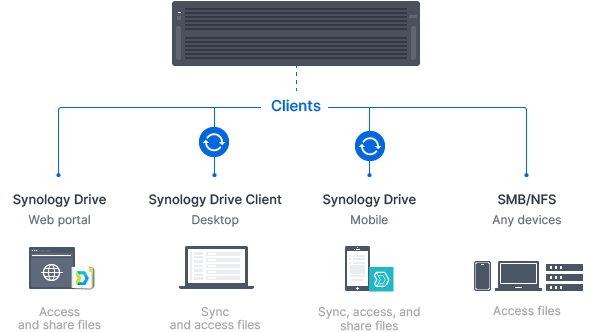

Synology Drive is a private cloud management and access solution that enables remote data access, synchronization, on-demand file restoration, and backup via desktop and mobile applications. Sync data between different platforms and devices, and access your organization’s files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the advanced Synology Drive Admin Console.
Leverage SMB or NFS shares to provide efficient access to company files over the local network or VPN. Manage data access privileges with access control lists (ACL) though Active Directory/LDAP integration and protect files against tampering or removal with built-in snapshot technology.

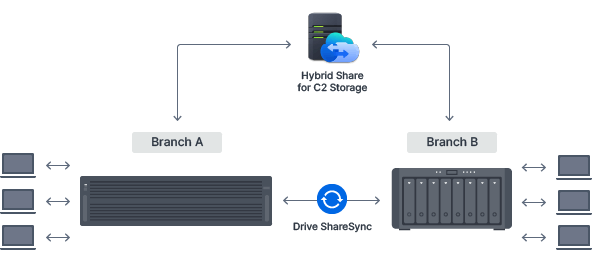

Make sure branches or teams always have up-to-date copies of crucial documents and data available locally by syncing folders one or two-way using Synology Drive ShareSync. Let your Synology systems update files across locations each time there is a change to efficiently keep all stakeholders on the same page.
Securely synchronize files and data from the HD6500 to Synology systems across different sites or offices, and back, by leveraging hybrid cloud technology with Synology Hybrid Share. Synchronize large sets of data to the cloud, and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size. Frequently used files are kept stored on local NAS to provide users access at LAN speeds and can also be pinned manually to prevent them from being removed from the cache.
Protect large numbers of PCs, servers, Synology systems, and hypervisors, or back up your backup servers with a central storage solution.

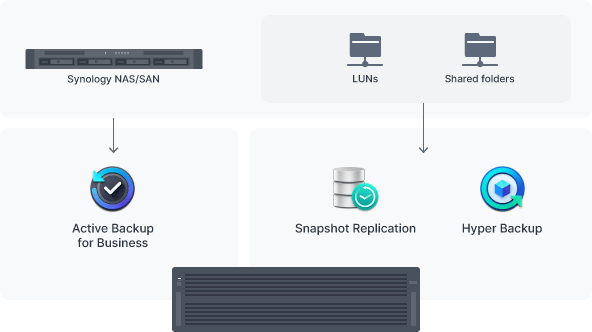

Use Hyper Backup to back up files, LUNs, installed applications, and system configurations from tens or hundreds of Synology servers to your HD6500. Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, reduce backup sizes with built-in deduplication, and restore data flexibly with multi-versioning.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.
Centrally manage bare-metal backups of all your Synology servers from a single centralized console on your HD6500. Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.

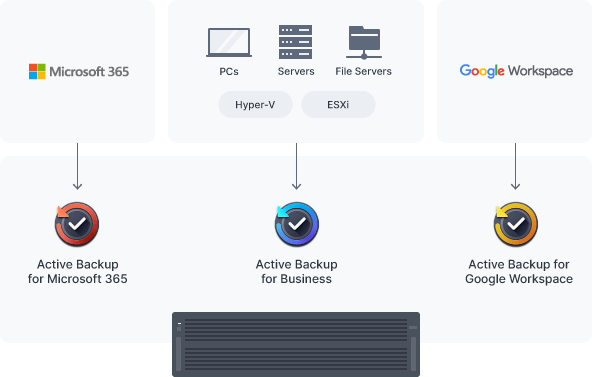

Securely back up Windows clients and servers, Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines to the HD6500 with Active Backup for Business. Coordinate all data protection from the centralized management console and choose between bare-metal or file-level restoration, while leveraging built-in deduplication technology to reduce backup sizes.
Protect full Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.
Manage distributed deployments of hundreds of local recording servers and thousands of IP cameras centrally.
Connect up to 650 IP cameras from a selection of over 8,300 validated models to the HD6500 itself, or connect hundreds more by adding recording servers at the edge. Easily add storage as deployments grow.
Manage up hundreds of Synology NAS or NVR recording servers from one host, store copies of all or some recordings centrally, and monitor all streams from one interface with Surveillance Station Centralized Management System.
Admins can set detailed rules for who can check live streams or review recordings and footage can be protected against unauthorized access with industry-standard AES-256 encryption.
Watch and analyze live streams or recordings from web browsers, desktop clients, or mobile apps.
Automatically locate cameras within a set IP range or configure units in batch by importing spreadsheets and conveniently replicate settings to new cameras.

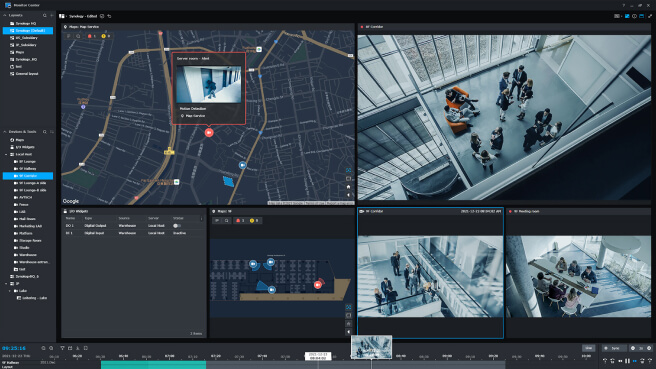

Preview footage directly on multi-floor, multi-location maps when events are detected to stay on top of your deployment, with Google Maps and OpenStreetMap integration to make geographically spread-out deployments easier to monitor.

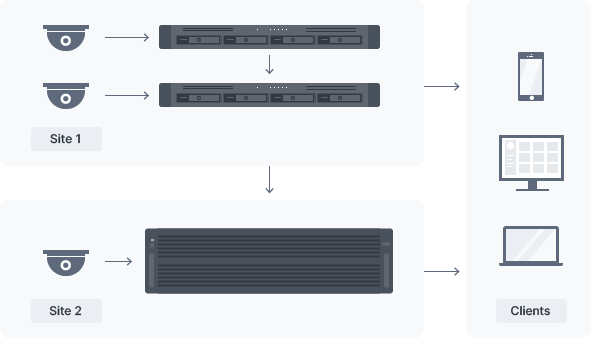

Record each camera’s footage to two Synology servers simultaneously for added redundancy and instant access — for instance, to a smaller device at the edge and a larger central management server. Stream feeds directly to the cloud with C2 Backup for Surveillance for fast access and convenient sharing whenever you need evidence.
Add support for deep learning-powered algorithms and detection profiles such as intrusion detection, license plate recognition, congestion alerts, and face recognition by joining Deep Learning NVR servers to your deployment.
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.
Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.
Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
The HD6500 is backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
|
DSM Specifications
|
||
|---|---|---|
| Maximum Single Volume Size |
|
|
| Maximum Internal Volume Number | 256 | |
| SSD Read/Write Cache (Determining cache size) | ||
| RAID Group | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
| Internal Drives |
|
|
| External Drives |
|
|
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
| File Protocol |
|
|
| Maximum Concurrent SMB/AFP/FTP Connections | 10,000 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 10,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
|
|
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Maximum Hybrid Share Folders | 30 | |
| Folder and Package Backup | ||
| Entire System Backup | ||
| Notes | Full-system backup requires DSM 7.2 or later. | |
| Synology High Availability | ||
| Syslog Events per Second | 6,000 | |
|
Virtualization
|
VMware ESXi 7.0 and VAAI | |
| Windows Server 2016 | ||
| Windows Server 2019 | ||
| Windows Server 2022 | ||
| Citrix Ready | ||
| OpenStack | ||
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
|
Add-on Packages view the complete package list
|
||
| Suggested Users | 500 | |
| Notes |
|
|
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Free Email Accounts | 5 (Additional accounts require purchase of licenses) | |
| Suggested Users | 20,000 | |
| Notes |
|
|
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Default Licenses | 2 (Additional cameras require purchase of licenses) | |
| Suggested Maximum IP Cameras and Total FPS (H.264) |
|
|
| Suggested Maximum IP Cameras and Total FPS (H.265) |
|
|
| Notes |
|
|
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
|
|
| Suggested Users | 17,500 | |
| Notes |
|
|
| Recommended Virtual Machine Instances | 40 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 40 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
| NAS | |
|---|---|
| CPU Model | Intel Xeon Silver 4210R |
| CPU Quantity | 2 |
| CPU Core | 10 |
| CPU Architecture | 64-bit |
| CPU Frequency | 2.4 (base) / 3.2 (turbo) GHz |
| Hardware Encryption Engine | Yes |
| Memory | 64 GB DDR4 ECC RDIMM |
| Drive Bays | 60 |
| Hot Swappable Drive | Yes |
| RJ-45 1GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 2 |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Power Supply Unit / Adapter | 1600 watts |
| Total Memory Slots | 16 |
| Maximum Memory Capacity | 512 GB (32 GB x 16) |
| Expansion Port | 2 |
| PCIe Expansion | 2 x Gen3 x16 slot (x16 link) 2 x Gen3 x8 slots (x8 link) |
| Form Factor (RU) | 4U |
| Redundant Power Supply | Yes |
| RJ-45 10GbE LAN Port | 2 |
