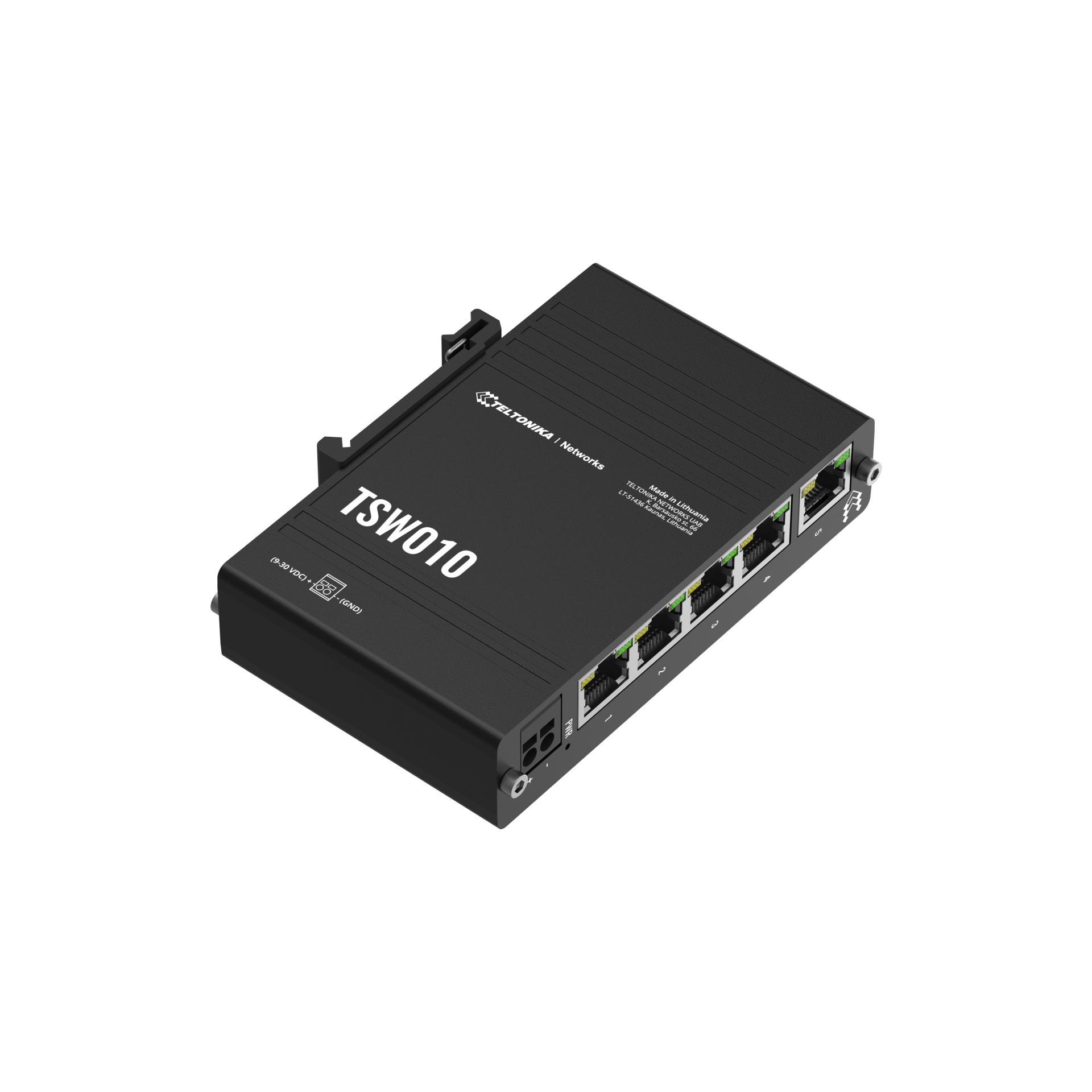

Name: TSW010
Brand: Teltonika
SKU: TSW010
Price: 1850.00 EGP
Availability: OutOfStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Teltonika

Product Code: TSW010

Availability: 12-18 Days

Weight: 0.15kg

Dimensions: 8.05cm x 11.31cm x 2.74cm

Attachments:
- TSW010.pdf

5xE Ports

Price: 1,850.00EGP

Qty: - +

Overview

TSW010 Ethernet switch offers the most affordable way to extend network connectivity to multiple Ethernet devices. Five 10/100 Mbps Ethernet ports ensure stable and reliable connectivity, sufficient for most industrial applications where high throughput is not required.

PLUG AND PLAY

No additional configuration needed

MOUNTING

Integrated DIN rail bracket and surface mounting options.

INDUSTRIAL DESIGN

Anodized aluminum housing and panels.

ETHERNET

5 x Ethernet ports with speeds of up to 100 Mbps.

Industrial switch
Profinet	Profinet Class A conformance (available with optional order code)
ETH	5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3x, 802.3az
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
Bandwidth (Non-blocking)	1 Gbps
Jumbo frame support	2048 bytes
MAC address table size	2K entries
Connector	2-pin industrial DC power socket
