Name: TSW030
Brand: Teltonika
SKU: TSW030
Price: 3500.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Teltonika

Product Code: TSW030

Availability: 10

Weight: 0.26kg

Dimensions: 7.46cm x 11.31cm x 4.12cm

Attachments:
- TSW030.pdf

8xE ports

Price: 3,500.00EGP

Qty: - +

Overview

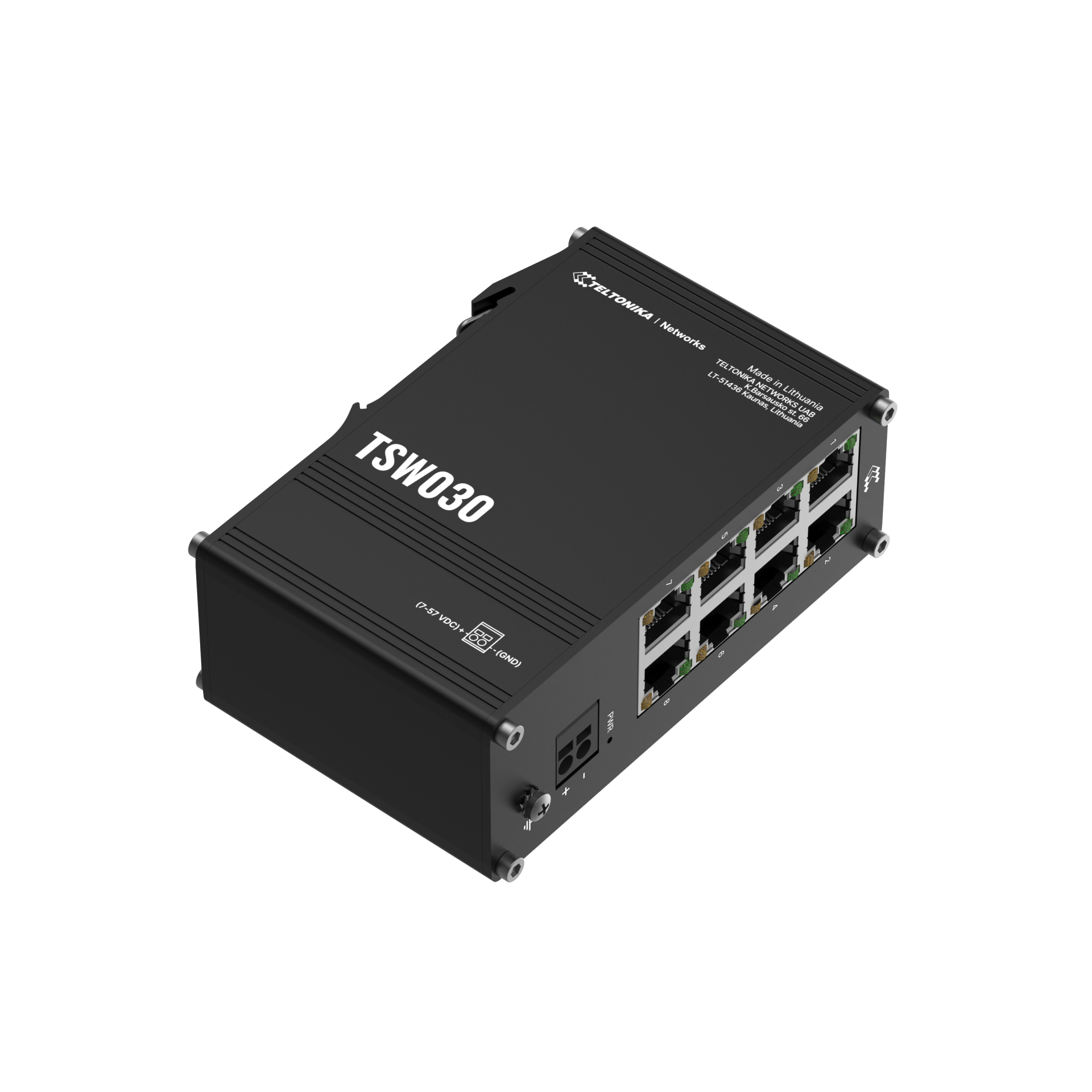

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

2-pin Power Input

Simple and suitable for industrial applications.

Low Power Consumption

Up to 0.5 W when idle, up to 1.5 W maximum.

Integrated DIN Rail

Easy mounting for plug-and-play deployment.

8 X RJ45 Ports

Eight 10/100 Mbps Ethernet ports.

Industrial switch
Profinet	Profinet Class A conformance (available with optional order code)
ETH	8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
Bandwidth (Non-blocking)	20 Gbps
Jumbo frame support	9216 bytes
MAC address table size	2K entries
Connector	2-pin industrial DC power socket
