Name: TSW110
Brand: Teltonika
SKU: TSW110
Price: 5800.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Teltonika

Product Code: TSW110

Availability: 10

Weight: 0.23kg

Dimensions: 8.50cm x 10.00cm x 3.00cm

Attachments:
- TSW110.pdf

5 x GE ports

Price: 5,800.00EGP

Qty: - +

Overview

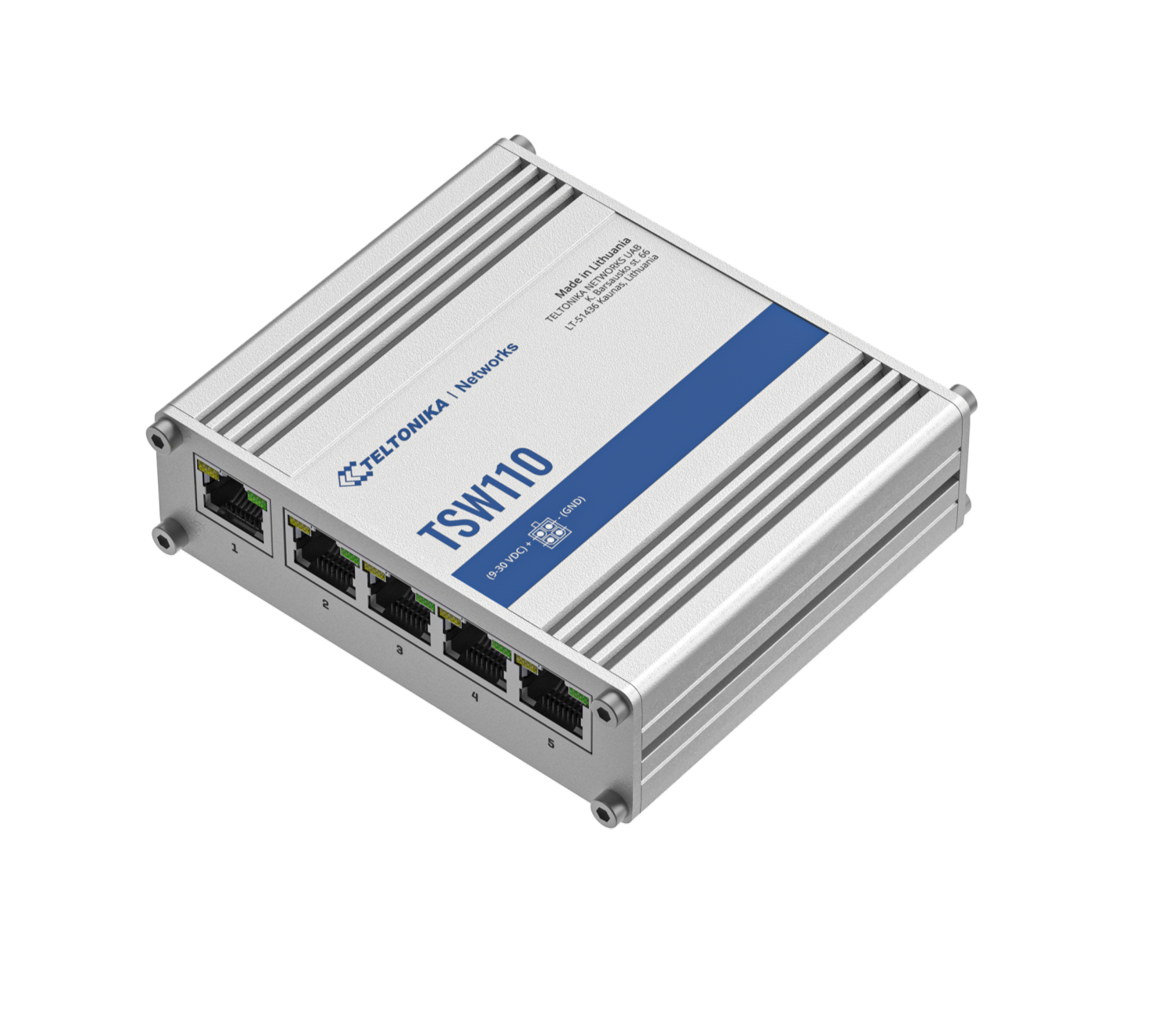

TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).

GIGABIT ETHERNET

5 x Gigabit Ethernet with speeds up to 1000 Mbps.

DURABILITY

Rugged aluminium housing.

MOUNTING

DIN rail and surface mounting options.

TEMPERATURE

Operating temperature from -40 °C to 75 °C.

Industrial switch
Profinet	Profinet Class A conformance (available with optional order code)
ETH	5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30
Input voltage range	9 – 30 VDC
PoE (passive)	Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Connector	4-pin industrial DC power socket
