Synology 12 Bay DiskStation DS3622xs+ (Diskless)

Call for Price:

Qty: - +

High-performance mass storage

The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into small and medium business environments with intensive and multi-user workloads. Its high capacity, scalability, and processing power make it ideal for VM and container storage, for lightning-fast file sharing, and as a network video recorder for large surveillance deployments. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video.

CPU

Six-core Intel^® Xeon^® processor

Throughput

4,719 MB/s seq. read
260,691 4K random read IOPS¹

Memory

16 GB DDR4 ECC, expandable to 48 GB

Scalability

Expand to 36 drives with two DX1222 expansion units

Dependable storage for many scenarios

Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.

Multi-purpose NAS storage

Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.

SAN infrastructure for SMBs

Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability.

Versatile business applications

Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.

Faster performance

Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.

Built to maximize uptime

The DS3622xs+ is built to keep mission-critical data and services accessible, so that businesses can continue to perform even when disaster strikes.

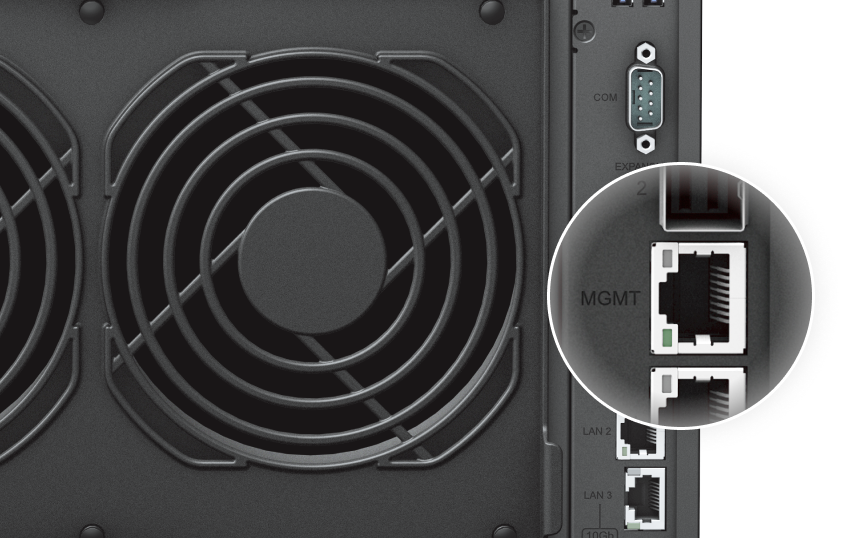

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

High-availability solution

Create an active-passive cluster with minute-level failover by pairing the DS3622xs+ with an identical unit using Synology High Availability.

Rise to the challenge

Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your business continues to grow. Use add-in cards to add bandwidth, fast SSD cache, or both.

Maximize bandwidth

Handle heavier I/O and serve more users with dual-port Synology 10 or 25GbE network interface cards. Integrate with any FC SAN using compatible Fibre Channel adapters.

Accelerate storage performance

Do both with one card

Out-of-the-box data protection

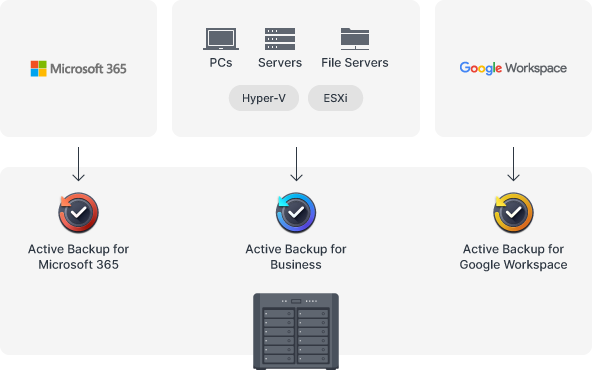

Consolidate backups to your NAS

Active Backup Suite

Securely back up Windows clients and servers, Microsoft 365 and Google Workspace accounts, file servers, and VMware^® and Hyper-V^® virtual machines with the Active Backup Suite.
Leverage built-in deduplication technology to reduce backup sizes and multi-versioning to allow flexible restoration.

Implement a 3-2-1 backup strategy

Combine local and remote backup strategies to achieve fully redundant protection of your IT infrastructure using Synology and third-party solutions.

Back up your NAS to other devices

Hyper Backup

Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology NAS.
Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.

Snapshot Replication

Snapshot Replication enables configurable point-in-time snapshots of shared folders and virtual machines with an RPO as low as 5 minutes and recovery within seconds.

Efficient collaboration and communication

Empower your workforce to collaborate, share files, and communicate from anywhere.

Synology Drive

Host your own private cloud behind the safety of your NAS with 100% data ownership and no subscription fees.

Synology Office

Synology MailPlus

Certified virtual machine storage

Synology DiskStation Manager (DSM) streamlines provisioning for and management of virtual machines with full certification for VMware^® vSphere™, Microsoft^® Hyper-V^®, Citrix^® XenServer™, and OpenStack virtualization environments.

Synology Storage Console for VMware^® or Windows platforms lets you manage storage directly from your hypervisor. VMware^® VAAI integration and Windows ODX help offload storage operations and speed up data transfer, and a Kubernetes CSI driver lets you provision and manage volumes directly from the K8s CLI.

Centralized surveillance for your business

Transform the DS3622xs+ into a powerful network video recorder with Synology Surveillance Station.

Secure and private

Footage stored locally is protected by industry-standard AES-256 encryption.

Scale up any time

Connect up to 90 IP cameras from a wide selection of over 7,900 validated models.

Real-time analytics

Take advantage of intelligent monitoring features and receive automatic alerts of security events.

DSM Specifications
Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	RAID Group
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Volumes over 108 TB require 32 GB of memory or more.
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	4,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	10,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	16,000
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Maximum Hybrid Share Folders	15
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability	Synology High Availability
Log Center	Syslog Events per Second	3,000
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2022
	Citrix Ready
	OpenStack
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
Synology Chat	Suggested Users	500
	Notes	Models with expandable memory are tested with their maximum supported memory.
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	256
	Maximum LUN	512
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Users	7,000
	Notes	Suggested users is derived from testing in an environment with 20% heavy users (each with 20,000 pre-populated emails and receiving 240 emails per day) and 80% light users (each receiving an average of 20 emails per day). Learn more The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only). Models with expandable memory are tested with their maximum supported memory. To estimate the RAM requirement for your NAS, please read this article.
Media Server	DLNA Compliance
Synology Photos	Facial Recognition
	Object Recognition
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	1080p: 90 channels, 2250 FPS 3M: 90 channels, 1500 FPS 5M: 90 channels, 900 FPS 4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	1080p: 90 channels, 2700 FPS 3M: 90 channels, 2250 FPS 5M: 90 channels, 1500 FPS 4K: 90 channels, 1080 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Synology Drive	Recommended Number of Concurrent Sync Clients	1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. Models with expandable memory are tested with their maximum supported memory. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Suggested Users	12,500
	Notes	Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more Models with expandable memory are tested with their maximum supported memory. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager	Recommended Virtual Machine Instances	12 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	12 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	60

NAS
CPU Architecture	64-bit
CPU Core	6
CPU Frequency	2.2 (base) / 2.7 (turbo) GHz
CPU Model	Intel Xeon D-1531
CPU Quantity	1
Drive Bays	12
Expansion Port	2
Hardware Encryption Engine	Yes
Hot Swappable Drive	Yes
Maximum Memory Capacity	48 GB (8 GB x 2 + 16 GB x 2)
Memory	16 GB DDR4 ECC SODIMM
PCIe Expansion	1 x Gen3 x8 slot (x8 link)
Power Supply Unit / Adapter	550 watts
RJ-45 1GbE LAN Port	2
System Fan	120 mm x 120 mm x 2 pcs
Total Memory Slots	4
USB 3.2 Gen 1 Port	2
