The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.9 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.
Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.
Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.
Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users.
Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.
Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.
Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.
Consolidate business data, backup data, and more in a highly scalable server.
File server
Utilize SA3610 and SA3410’s storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.

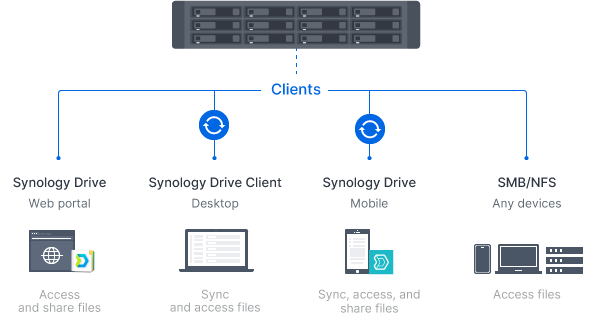

Empower employees across your organization to access, edit, and share corporate files securely and conveniently from desktop, mobile, or web browser platforms. Leverage powerful admin tools to track and set file permissions and control access to documents and files.
Configure and implement group policies for groups of users using access control lists (ACL) through Windows Active Directory/LDAP integration. Enable user access to files or folders via SMB or NFS protocols.

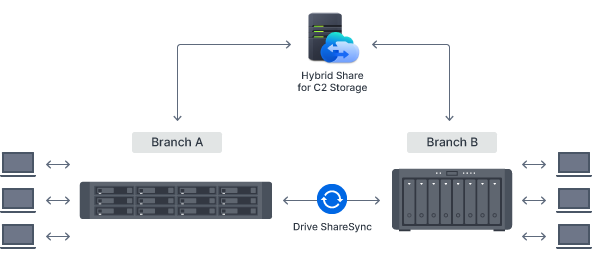

Synology Drive ShareSync enables one or two-way syncing between multiple Synology servers so that all team members can access the same set of data on their nearest file server.
Cut bandwidth use, boost sync speeds, and reduce storage footprint by intelligently syncing the bulk of your data to the cloud with Hybrid Share, while deploying Synology devices locally to give teams fast access to all their frequently used data at local network speeds.
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.

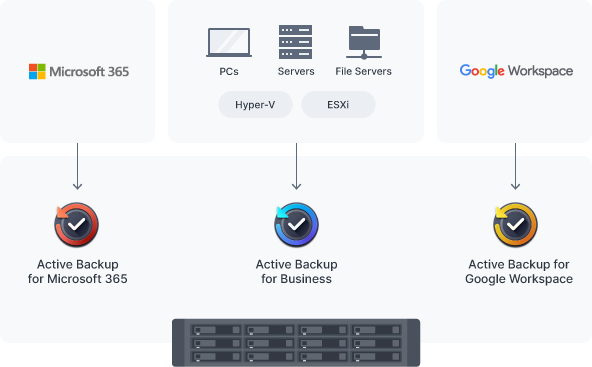

Securely back up Windows clients and servers, Linux endpoints, Synology systems, and VMware® and Hyper-V® virtual machines to the SA3610 and SA3410 with Active Backup for Business. Manage all tasks through a centralized management console and choose between bare-metal or file-level restoration. Built-in data deduplication maximizes storage efficiency
Protect Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.

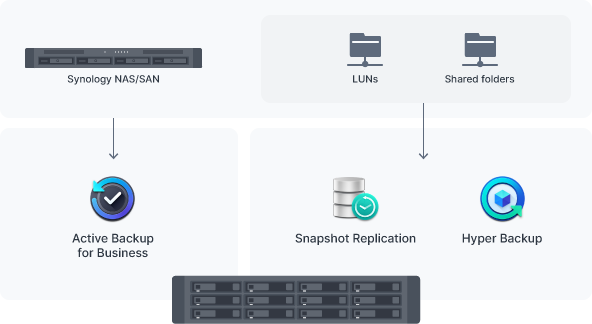

Use Hyper Backup to back up shared folders, LUNs, system settings, and software packages from your Synology system to a secondary server, external device, or Synology C2 Storage. Set up backup schedules, multi-versioning, and flexible backup rotation, protect data with fine-grained permissions and encryption, and reduce backup sizes with built-in deduplication.
Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.
Perform bare-metal backups and use multi-versioning and data deduplication to store backup copies of Synology systems, while drastically reducing the amount of space needed to store mission-critical data.
Boost team efficiency by utilizing Synology productivity solutions to work and communicate across teams or test out new software in company-hosted containers or virtual machines.
Create, edit, and share documents, slides, and spreadsheets with teams in real time. Store files in a secure private cloud to take ownership of your data.
Send and receive emails on Synology’s private email server using powerful webmail tools and experience full data ownership, transparent total cost of ownership, and robust security features.
Stay connected with team members by using secure one-on-one chats, public channels, encrypted private channels, and group conversations for efficient workplace communication.

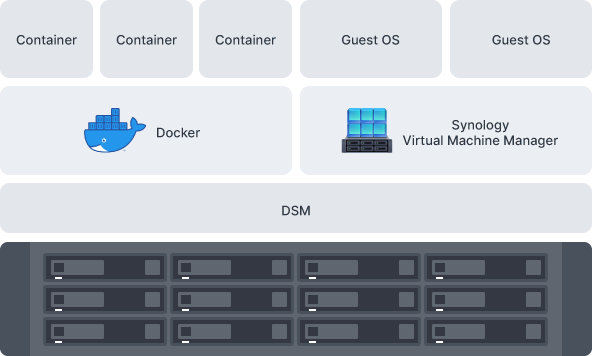

Safely test out new packages, software, and applications in an isolated environment using Docker and Synology Virtual Machine Manager7 (VMM) — a hypervisor for Windows®, Linux®, and Virtual DSM.
Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.
Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.
Monitor your global Synology fleet’s performance, backup status, login activity and more with the power of the cloud.
The SA3610 and SA3410 are backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.
Software Specs
|
DSM Specifications |
SA3610 |
|
|
Maximum Single Volume Size |
|
|
|
Maximum Internal Volume Number |
256 |
|
|
SSD Read/Write Cache (Determining cache size) |
||
|
SSD TRIM |
||
|
RAID Group |
||
|
Supported RAID Type |
|
|
|
RAID Migration |
|
|
|
Volume Expansion with Larger HDDs |
|
|
|
Volume Expansion by Adding a HDD |
|
|
|
Global Hot Spare Supported RAID Type |
|
|
|
Notes |
||
|
Internal Drives |
|
|
|
External Drives |
|
|
|
File Protocol |
|
|
|
Maximum Concurrent SMB/AFP/FTP Connections |
4,000 |
|
|
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) |
10,000 |
|
|
Windows Access Control List (ACL) Integration |
||
|
NFS Kerberos Authentication |
||
|
Notes |
||
|
Maximum Local User Accounts |
16,000 |
|
|
Maximum Local Groups |
512 |
|
|
Maximum Shared Folder |
512 |
|
|
Maximum Shared Folder Sync Tasks |
32 |
|
|
Maximum Hybrid Share Folders |
30 |
|
|
Folder and Package Backup |
||
|
Entire System Backup |
||
|
Notes |
||
|
Synology High Availability |
||
|
Syslog Events per Second |
3,000 |
|
|
Virtualization |
VMware ESXi 6.5 and VAAI |
|
|
Windows Server 2022 |
||
|
Citrix Ready |
||
|
OpenStack |
||
|
Supported Protocols |
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
|
|
Supported Browsers |
|
|
|
Supported Language |
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
|
|
Notes |
||
|
Suggested Users |
600 |
|
|
Notes |
||
|
Download Station |
||
|
Maximum Concurrent Download Tasks |
80 |
|
|
Maximum iSCSI Target Number |
256 |
|
|
Maximum LUN |
512 |
|
|
LUN Clone/Snapshot, Windows ODX |
||
|
Free Email Accounts |
||
|
Suggested Users |
12,000 |
|
|
Notes |
||
|
DLNA Compliance |
||
|
Facial Recognition |
||
|
Object Recognition |
||
|
Maximum Snapshots per Shared Folder |
1,024 |
|
|
Maximum of System Snapshots |
65,536 |
|
|
Default Licenses |
||
|
Suggested Maximum IP Cameras and Total FPS (H.264) |
|
|
|
Suggested Maximum IP Cameras and Total FPS (H.265) |
|
|
|
Notes |
|
|
|
Recommended Number of Concurrent Sync Clients |
2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
|
|
Recommended Number of Hosted Files |
50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
|
|
Notes |
||
|
Suggested Users |
15,000 |
|
|
Notes |
||
|
Recommended Virtual Machine Instances |
24 (Learn more) |
|
|
Recommended Virtual DSM Number (Licenses required) |
24 (including 1 Free License) |
|
|
Notes |
||
|
Maximum Connections |
60 |
|
| NAS | |
|---|---|
| RJ-45 10GbE LAN Port | 2 |
| CPU Architecture | 64-bit |
| CPU Core | 12 |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz |
| CPU Model | Intel Xeon D-1567 |
| CPU Quantity | 1 |
| Drive Bays | 12 |
| Expansion Port | 1 |
| Form Factor (RU) | 2U |
| Hardware Encryption Engine | Yes |
| Hot Swappable Drive | Yes |
| Maximum Memory Capacity | 128 GB (32 GB x 4) |
| Memory | 16 GB DDR4 ECC RDIMM |
| PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| Power Supply Unit / Adapter | 550 watts |
| Redundant Power Supply | Yes |
| RJ-45 1GbE LAN Port | 4 |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Total Memory Slots | 4 |
| USB 3.2 Gen 1 Port | 2 |
