Name: RackStation RS2423+
Brand: Synology
SKU: RS2423+
Price: 12580.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

Brand: Synology

Product Code: RS2423+

Availability: 10

Weight: 11.50kg

Dimensions: 55.20cm x 48.20cm x 8.80cm

Synology 12-Bay RackStation RS2423+ (Diskless)

Call for Price:

Qty: - +

Secure storage for your business

Business-ready

Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 240 TB raw storage before expansion.

Flexible configuration

Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.

Versatile applications

Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.

Faster and more responsive

The RS2423RP+/RS2423+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.¹ They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.

Designed for reliability

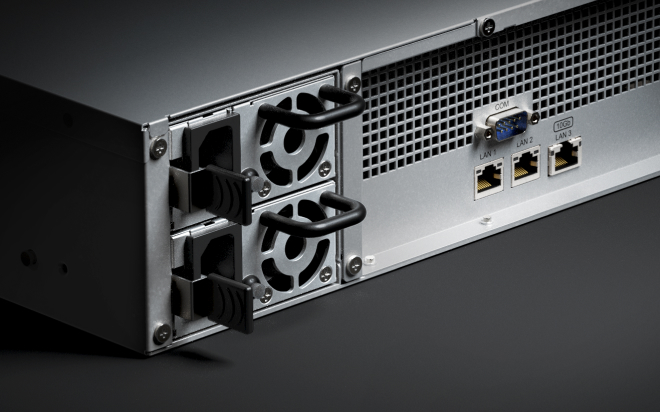

The RS2423RP+ and RS2423+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS2423RP+/RS2423+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.

reliability

Room for expansion

Easily adjust the 2U 12-bay RS2423RP+/RS2423+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

Storage expansion

Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.²

SSD cache

Flexible networking options

Versatile storage for businesses

The RS2423RP+/RS2423+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.

Intuitive storage for on-site and remote teams

Multi-endpoint data protection

Smart and scalable surveillance

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.

Private file cloud

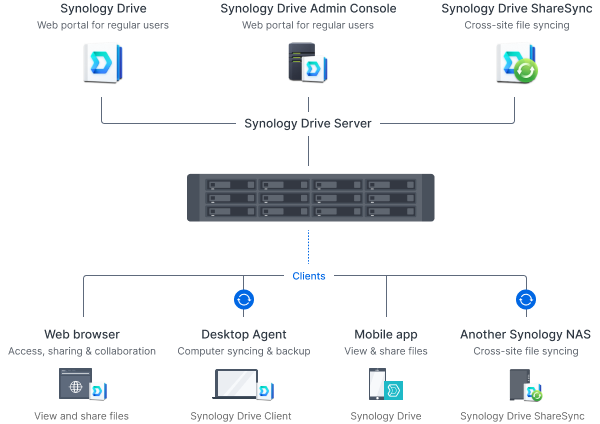

Enable efficient collaboration with Synology Drive

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

Multi-platform support

Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time

Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

private file cloud

Efficient multi-site synchronization

Connect teams with Hybrid Share

Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.

With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.

Local caching of most-used data

Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

Multi-endpoint data protection

Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.

Consolidated backup server

Endpoint, VM, and NAS/SAN protection

Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.

Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

Data protection and recovery

Hyper Backup

Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,⁵public cloud platforms, USB devices, file servers, local folders, and other Synology systems.
Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.

Snapshot Replication

Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.

Smart and scalable surveillance

Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

Simple-to-deploy local surveillance

Wide device compatibility

Connect up to 75 IP cameras from a selection of over 8,600 validated models thanks to Synology Surveillance Station’s wide camera compatibility.

Multi-platform convenience

Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.

Secure and private storage

Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.

Flexible monitoring of multiple locations

Assisted camera deployment

Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.

Centralized management and monitoring

Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.

Time-saving video analytics

Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.

Software Specs

DSM Specifications		RS2423+
Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	64
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Notes
File System	Internal Drives	Btrfs ext4
File System	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	2,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	2,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Maximum Hybrid Share Folders	10
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes
High Availability	Synology High Availability
Log Center
Log Center	Syslog Events per Second	1,000
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2022
	Citrix Ready
	OpenStack
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes
Central Management System
Synology Chat
	Suggested Users	150
	Notes
Download Station
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager
	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Users	5,000
	Notes
Media Server
Media Server	DLNA Compliance
Synology Photos
	Facial Recognition
	Object Recognition
Snapshot Replication
	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station
	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	1080p: 75 channels, 2100 FPS 3M: 75 channels, 1500 FPS 5M: 75 channels, 900 FPS 4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	1080p: 75 channels, 2250 FPS 3M: 75 channels, 2250 FPS 5M: 75 channels, 1500 FPS 4K: 75 channels, 900 FPS
	Notes
Synology Drive
	Recommended Number of Concurrent Sync Clients	600 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes
Synology Office
	Suggested Users	12,500
	Notes
Virtual Machine Manager
	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes
VPN Server
VPN Server	Maximum Connections	40

NAS
CPU Architecture	64-bit
CPU Core	4
CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
CPU Model	AMD Ryzen V1780B
CPU Quantity	1
Drive Bays	12
Expansion Port	1
Form Factor (RU)	2U
Hardware Encryption Engine	Yes
Hot Swappable Drive	Yes
Maximum Memory Capacity	32 GB (16 GB x 2)
Memory	8 GB DDR4 ECC UDIMM
PCIe Expansion	1 x Gen3 x8 slot (x4 link)
Power Supply Unit / Adapter	500 watts
RJ-45 1GbE LAN Port	2
System Fan	60 mm x 60 mm x 3 pcs
Total Memory Slots	2
USB 3.2 Gen 1 Port	2
