Name: DiskStation DS423+
Brand: Synology
SKU: DS423+
Price: 43950.00 EGP
Availability: InStock

01000502545
This email address is being protected from spambots. You need JavaScript enabled to view it.

DiskStation DS224+

DiskStation DS620slim

Brand: Synology

Product Code: DS423+

Availability: 10

Weight: 2.18kg

Dimensions: 22.30cm x 19.90cm x 16.60cm

Synology 4-Bay DiskStation DS423+ (Diskless)

Call for Price:

Qty: - +

Conquer home office data chaos

icon stunningly compact

Powerful functionality packed into a 4-bay chassis

Capable and compact

Consolidate and share

Store, organize, and share up to 80 TB of data.

Integrated data protection

Contains hardware and software safeguards engineered to protect your data — trusted by millions.

A capable all-around performer

The versatile DS423+ can serve as a central storage device as well as a multimedia hub.

Up to226/224 MB/sread/write¹

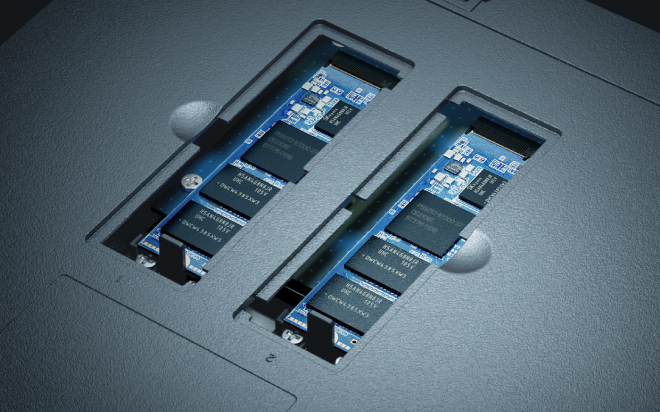

2 x M.2NVMeSSD slots²

2 x1GbELAN ports

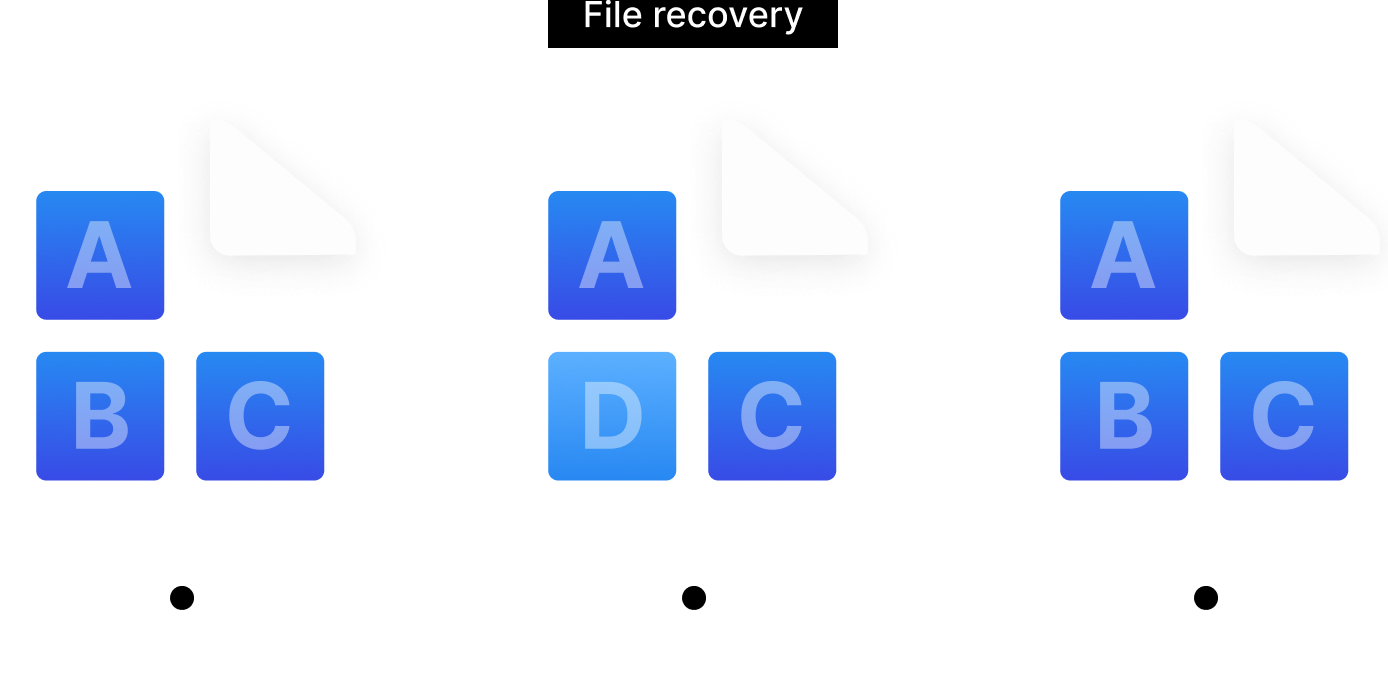

Btrfs: advanced file system for data protection

The Synology DiskStation Manager (DSM) operating system that powers DS423+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of any unintended or malicious changes through the use of snapshot technology.

btrfs your data is in safe hands2x

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

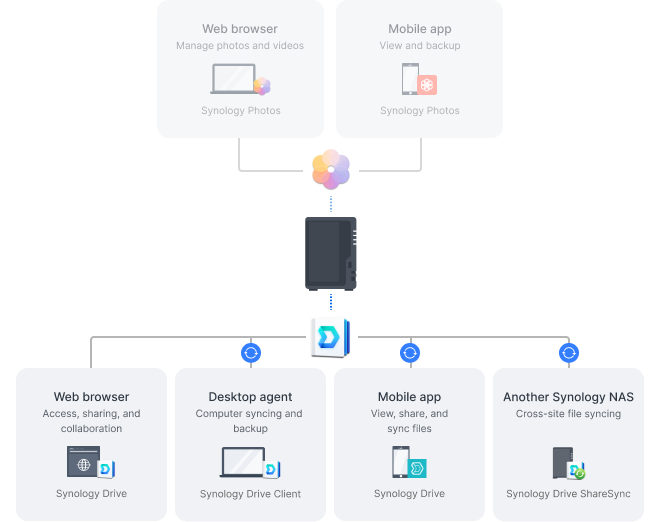

Private cloud for seamless data access

A private cloud for all your devices

Store, sync, access, and share data from any device, wherever you are. Work seamlessly between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Quickly and easily roll back files in case of accidental deletion, mistakes, malware, etc., with the versioning feature.

Keep your photos organized

Effortlessly keep multiple Synology NAS in sync

Share data with the power of the cloud

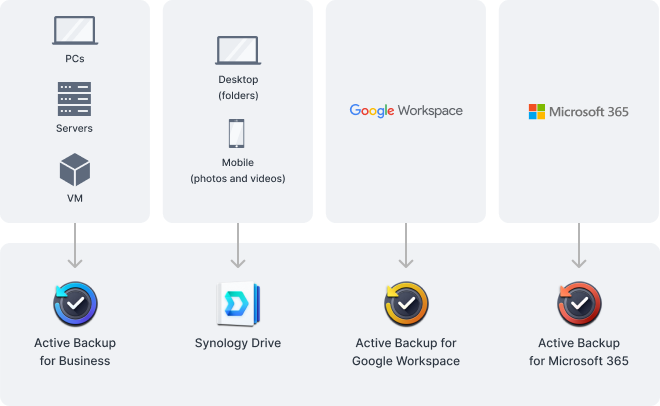

Multi-layered backup

Back up PCs, smartphones, cloud apps, and more

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

Perform full Synology system backups

Protect folders and LUNs with snapshots

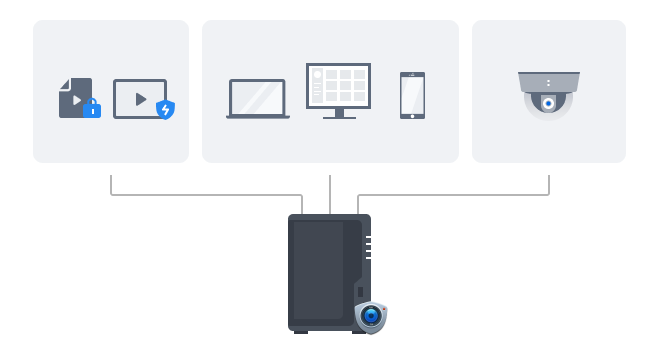

Smart surveillance

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 8,300 IP camera models, and remote monitoring and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Dual recording to the cloud
smart surveillance 1 v2

DSM Specifications
Storage Management	Maximum Single Volume Size	108 TB
	Maximum Internal Volume Number	64
	M.2 SSD Storage Pool Support*
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
	Notes	Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	500
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	1,500
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	8
Hybrid Share	Maximum Hybrid Share Folders	10
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability	Synology High Availability
Log Center	Syslog Events per Second	800
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2022
	Citrix Ready
	OpenStack
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
Synology Chat	Suggested Users	100
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with their maximum supported memory.
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Users	500
	Maximum Server Performance	1,224,000 emails per day, approx. 37GB
	Notes	Suggested users is derived from testing in an environment with 20% heavy users (each with 20,000 pre-populated emails and receiving 240 emails per day) and 80% light users (each receiving an average of 20 emails per day). Learn more Models with more than 4 bays were installed with two SSDs for SSD cache. Models with expandable memory are tested with their maximum supported memory. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server	DLNA Compliance
Synology Photos	Facial Recognition
	Object Recognition
	Notes	Object recognition requires an upgrade of memory capacity to a minimum of 4 GB.
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	720p: 40 channels, 1200 FPS 1080p: 40 channels, 800 FPS 3M: 35 channels, 350 FPS 5M: 28 channels, 280 FPS 4K: 17 channels, 170 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	720p: 40 channels, 1200 FPS 1080p: 40 channels, 1200 FPS 3M: 40 channels, 600 FPS 5M: 40 channels, 480 FPS 4K: 20 channels, 200 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The maximum number of camera stream outputs is 2 times the suggested maximum number of IP cameras.
Synology Drive	Recommended Number of Concurrent Sync Clients	350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. Models with expandable memory are tested with their maximum supported memory. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Suggested Users	3,000
	Notes	Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more Models with expandable memory are tested with their maximum supported memory. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager	Recommended Virtual Machine Instances	2 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	2 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	40

NAS
Compatible Drive Type	3.5
CPU Architecture	64-bit
CPU Core	4
CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
CPU Model	Intel Celeron J4125
CPU Quantity	1
Drive Bays	4
Hardware Encryption Engine	YES
Hot Swappable Drive	YES
M.2 Drive Slots	2 (NVMe)
Maximum Memory Capacity	18 GB (2 GB + 16 GB)
Memory	2 GB DDR4 non-ECC
Power Supply Unit / Adapter	90 watts 100V to 240V AC 50/60 Hz, Single Phase
RJ-45 1GbE LAN Port	2
System Fan	92 mm x 92 mm x 2 pcs
Total Memory Slots	1
USB 3.2 Gen 1 Port	2
