The 12-bay RS3621xs+ is capable of delivering over 238K 4K random read IOPS and 5,819 MB/s sequential read throughput — a true enterprise powerhouse. With full power supply redundancy, an 8-core processor, ECC memory, advanced snapshot technology, and file self-healing, the RS3621xs+ provides a reliable foundation to any data-driven business.
Intel® Xeon® D-1541 8-core 2.1 GHz
Built-in dual-port 10GbE
8 GB ECC DDR4 Up to 64 GB
Up to 36 drive bays with RX1217RP/RX1217
The RS3621xs+ keeps your data protected while you concentrate on delivering the best results to your customers — even when disaster strikes.
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans allow them to be replaced without powering down the system.
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

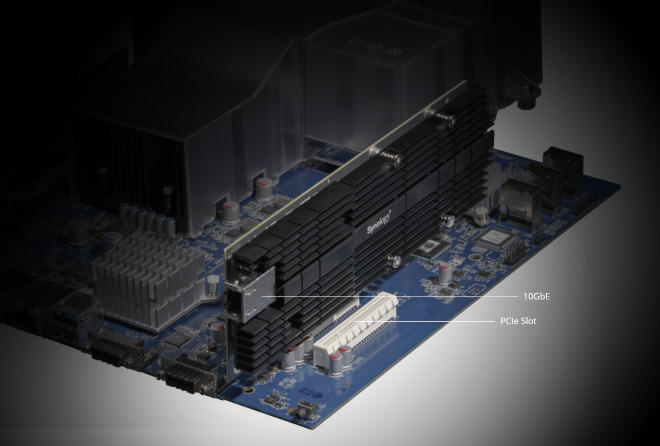

The RS3621xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment.

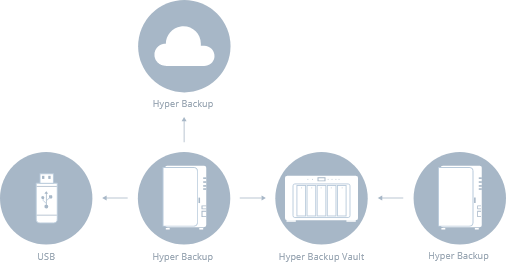

A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage used.
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

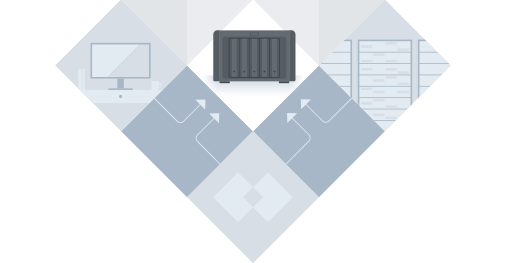

Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used.
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments.
Synology Surveillance Station transforms the RS3621xs+ into a feature-packed Network Video Recorder solution. Support for up to 90 IP cameras and video analytics such as motion detection, no idle zone, foreign object detection, and anomaly detection cater to the most common surveillance scenarios.
AES-256 encryption adds additional security to the locally-stored footage.
Access recordings and live streams whenever you want using a web browser, desktop client, or the DS cam mobile app.
Email, SMS, or push notifications alert you when incidents occur or predefined conditions are met.
|
DSM Specifications
| ||
|---|---|---|
| Maximum Single Volume Size |
|
|
| Maximum Internal Volume Number | 256 | |
| SSD Read/Write Cache (Determining cache size) | ||
| SSD TRIM | ||
| RAID Group | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
| Internal Drives |
|
|
| External Drives |
|
|
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
| File Protocol |
|
|
| Maximum Concurrent SMB/AFP/FTP Connections | 2,000 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 10,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
|
|
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Maximum Hybrid Share Folders | 15 | |
| Folder and Package Backup | ||
| Entire System Backup | ||
| Notes | Full-system backup requires DSM 7.2 or later. | |
| Synology High Availability | ||
| Syslog Events per Second | 3,000 | |
|
Virtualization
|
VMware ESXi 6.5 and VAAI | |
| Windows Server 2016 | ||
| Windows Server 2019 | ||
| Windows Server 2022 | ||
| Citrix Ready | ||
| OpenStack | ||
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
|
Add-on Packages view the complete package list
| ||
| Suggested Users | 500 | |
| Notes | Models with expandable memory are tested with their maximum supported memory. | |
|
Download Station
|
Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Notes | iSCSI Manager has been renamed to SAN Manager in DSM 7.0. | |
| Free Email Accounts | 5 (Additional accounts require purchase of licenses) | |
| Suggested Users | 10,000 | |
| Notes |
|
|
| DLNA Compliance | ||
| Facial Recognition | ||
| Object Recognition | ||
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Default Licenses | 2 (Additional cameras require purchase of licenses) | |
| Suggested Maximum IP Cameras and Total FPS (H.264) |
|
|
| Suggested Maximum IP Cameras and Total FPS (H.265) |
|
|
| Notes |
|
|
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
|
|
| Suggested Users | 12,500 | |
| Notes |
|
|
| Recommended Virtual Machine Instances | 16 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 16 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
| NAS | |
|---|---|
| RJ-45 10GbE LAN Port | 2 |
| CPU Architecture | 64-bit |
| CPU Core | 8 |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz |
| CPU Model | Intel Xeon D-1541 |
| CPU Quantity | 1 |
| Drive Bays | 12 |
| Expansion Port | 2 |
| Form Factor (RU) | 2U |
| Hardware Encryption Engine | Yes |
| Hot Swappable Drive | Yes |
| Maximum Memory Capacity | 64 GB (16 GB x 4) |
| Memory | 8 GB DDR4 ECC UDIMM |
| PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| Power Supply Unit / Adapter | 500 watts 550 watts* |
| Redundant Power Supply | Yes |
| RJ-45 1GbE LAN Port | 4 |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Total Memory Slots | 4 |
| USB 3.2 Gen 1 Port | 2 |
