Name: Deep Learning NVR Series DVA3221
Brand: Synology
SKU: DVA3221
Price: 12580.00 EGP
Availability: InStock

Brand: Synology

Product Code: DVA3221

Availability: 10

Weight: 4.92kg

Dimensions: 16.60cm x 25.00cm x 23.70cm

Synology 4 Bay DVA Deep Learning Video Analytics DVA3221 (Diskless)

Call for Price:

Qty: - +

Smarter surveillance

Combine the comprehensive video management features in Synology Surveillance Station with advanced analytics to speed up incident response and collect better business intelligence.

AI-powered insights

Bolster the security of your premises while increasing efficiency.

Versatile monitoring

Watch over your deployment in the way that works best for you.

Easy deployment

Quickly set up your surveillance system with minimal effort.

Advanced analytics platform

Monitor and secure your premises more effectively with locally processed analytics, ensuring security and confidentiality.

Deep Learning NVR Series

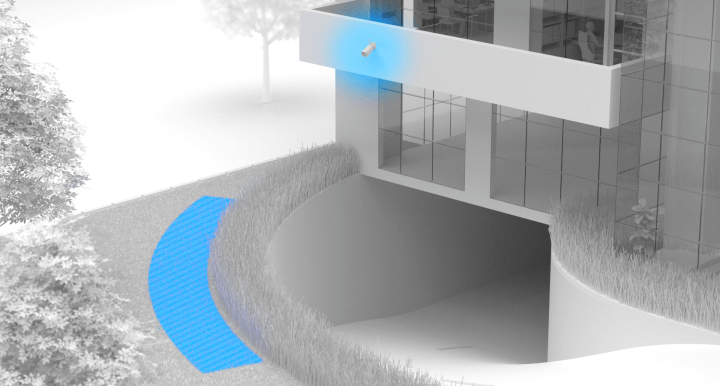

People & Vehicle Detection

Trigger immediate or threshold-based alerts using idle times within defined zones for people or vehicles.

License Plate Recognition

Intrusion Detection

People & Vehicle Counting

Congestion Alerts

Face Recognition

Face Covering Detection

Flexible monitoring capabilities

Leverage highly configurable options and automation features to act quickly when potentially dangerous situations arise.

Map-supported alerts

Display real-time previews of detected events on interactive multi-floor and multi-site maps supported by Google Maps and OpenStreetMap.

Automation rules

Reduce workloads by triggering responses to specific situations, such as activating recording when a microswitch detects a door is opened.

Notifications

Specify which events should trigger a notification, and whether to receive alerts by SMS, email, or push notification on mobile devices.

Comprehensive access options

Enjoy a uniform monitoring experience wherever you are and adapt your surveillance system to your needs — not the other way around.

Space-saving installation

Minimize the footprint of your monitoring setup. The DVA1622’s local management capabilities make it an ideal solution for compact home surveillance systems and security kiosks when available space is limited.

High definition video output

Connect an external display directly to the built-in HDMI port to start monitoring your premises in minutes.

Local management

Control your Surveillance Station installation without setting up a dedicated PC by attaching a mouse and keyboard directly to the DVA1622.

Anytime, anywhere surveillance

Investigate incidents from anywhere to minimize reaction times and take appropriate action faster.

Multi-platform support

Monitor streams in real time or browse recorded footage seamlessly from browsers, desktop clients, and mobile apps.

Monitoring on the go

Install the DS cam app on your iOS and Android mobile devices to always have a monitoring option on hand.

Deploy and protect with ease

Get large or multi-site surveillance systems up and running easily while keeping recordings safe from malfunctions and third-party attacks.

Wide compatibility

Pick from 8,300+ Synology-validated models or leverage ONVIF support for even more flexibility.

Multi-site management

Manage fleets of recording servers from a single interface.

Granular delegation

Distribute monitoring and managing privileges flexibly.

Software Specs

Surveillance Station		DVA3221
Video Analysis	Deep Video Analytics Features	People and vehicle detection (with license plate recognition) People counting Vehicle counting Intrusion detection Face recognition
	Deep Video Analytics Tasks	People and vehicle detection (without license plate recognition): up to 12 tasks People and vehicle detection (with license plate recognition): up to 6 tasks People counting: up to 12 tasks Vehicle counting: up to 12 tasks Intrusion detection (detecting specific objects): up to 12 tasks Face recognition: up to 6 tasks
	Maximum Number of Registrations Supported by Face Database	10,000
	Notes	When recording in 4k resolution, the number of deep video analytics tasks is limited to 8. Learn more DVA3221 supports recognizing license plates on vehicles moving at speeds up to 40 km/h.
General Specifications	Default Licenses	8 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	720p: 32 channels, 960 FPS 1080p: 32 channels, 448 FPS 3M: 28 channels, 280 FPS 5M: 19 channels, 190 FPS 4K: 13 channels, 130 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	720p: 32 channels, 960 FPS 1080p: 32 channels, 960 FPS 3M: 32 channels, 320 FPS 5M: 20 channels, 200 FPS 4K: 15 channels, 150 FPS
	Video Codecs	H.264 H.264+ H.265 H.265+ MJPEG MPEG-4 MxPEG (not supported by Deep Video Analytics tasks)
	Audio Codecs	AMR G711 G726 PCM
	Notes
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Storage Management	Maximum Single Volume Size	108 TB
	Maximum Internal Volume Number	64
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 10 RAID 1 RAID 5 RAID 6
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6 (with Expansion Unit)
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Each internal volume (may consist of multiple drives) is expandable up to 108TB. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
VPN Server	Maximum Connections	40

NAS
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.1 GHz
CPU Model	Intel Atom C3538
Drive Bays	4
Hardware Encryption Engine (AES-NI)	Yes
Hot Swappable Drive	Yes
Maximum Memory Capacity	32 GB (16 GB x 2)
Memory	8 GB DDR4 non-ECC
Power Supply Unit / Adapter	250 W
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
System Fan	120 mm x 120 mm x 1 pcs
Total Memory Slots	2
USB 3.0 Port	3
